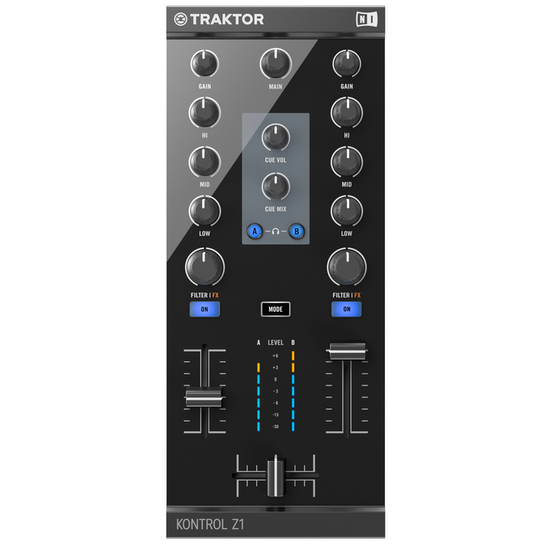

NI Traktor Kontrol Z1
DJ Mixing Controller
WORLD’S SMALLEST PRO DJ MIXER
TRAKTOR KONTROL Z1 is the ultra-compact 2-channel mixer, controller, and soundcard for TRAKTOR DJ and TRAKTOR PRO 2.
- Ultra-portable setup for TRAKTOR DJ and TRAKTOR PRO 2
- Pro-quality knobs, faders, and backlit buttons
- Mixing interface with 3-band EQ, built-in 24-bit soundcard
Hardware Specifications
Overall:
Sampling rate: 96kHz
Converter wordlength: 24-bit
Analog output channels: 4
USB audio interface: USB 2.0 hi-speed, audio class compliant
Master RCA outputs:
Maximum output level (unbalanced) +12.5 dBu
Noise floor -89,3 dB a weighted
Dynamic range +101.5 dB a weighted
THD+N 0.003% (LP 20kHz)
Frequency response 20-40000Hz, +/- 0.1 dB
Crosstalk -116 dB
Headphone output:
Maximum output level 12.3 dBu/ 3,2 Vrms (100K load)
Maximum output power 40 mW
THD+N 0.004% (100K load)
Noise floor -94 dBu
Dynamic range 101 dB
