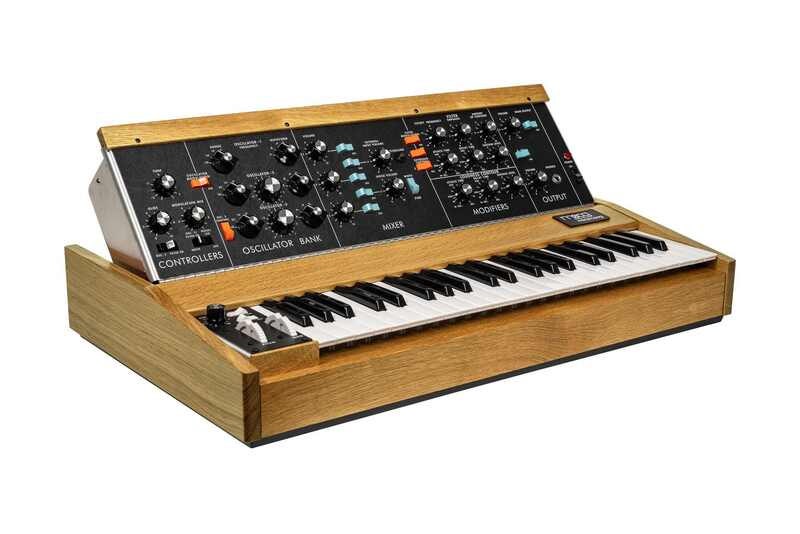

Moog Minimoog Model-D 2026 Bob Moog Tribute Edition + Free SR Moog SoftCase

Features

• This reissue features the identical sound engine and signal path of the 1970s Minimoog Model D plus a series of popular modifications, including:
  • MIDI integration
  • Dedicated analog LFO with triangle and square waveshapes
  • Premium Fatar keybed with velocity and aftertouch available via top panel CV jacks with onboard trimpots
  • Mixer feedback modification which allows the Minimoog Model D to overdrive and scream with the turn of a knob
  • A spring-loaded pitch wheel with center deadband
• Strictly limited edition of 500 units
• Custom quartersawn white oak cabinet
• Classic metal reverse screen printed Minimoog badges on front and rear
• Custom Bob Moog Foundation sticker on rear panel
• Hand-built by the Moog Music team in North Carolina
• Included semi-rigid case designed specially for the Minimoog Model D
• $500 from each unit will be donated to the Bob Moog Foundation to directly support the Moogseum, Dr. Bob’s Sound School, and the Bob Moog Foundation Archives

Technical Specifications

• DIMENSIONS (WITH PANEL FULLY LOWERED)
  • Width: 28.625" / 727 mm
  • Depth: 17.125" / 435 mm
  • Height: 5.75" / 146 mm
  • Net Weight: 32 lbs. / 14.5 kg.
• TEMPERATURE
  • Storage Temperature: 5F to 140F (2C to 60C)
  • Nominal Operating Temperature: 50F to 95F (10C to 35C)
  • Operational Temperature: 50F to 122F (10C to 50C)
• SOUND SOURCES
  • Oscillators x 3
  • Noise Generator
  • External Input
• OSCILLATORS
  • Frequency Range: 0.1 to 20kHz (In Six Overlapping Ranges)
  • Oscillator Stability (short term) > 0.25 %
  • Waveforms:
    • Triangle
    • Triangle-Sawtooth (Oscillator-1, Oscillator-2)
    • Reverse Sawtooth (Oscillator-3)
    • Sawtooth
    • Rectangle
    • Wide Pulse
    • Narrow Pulse
• NOISE GENERATOR
  • White and Pink
• LFO
  • Rate: 0.05Hz to 200Hz
  • Waveform: Triangle (knob down); Square (knob up)
• EXTERNAL INPUT
  • Input Range: +10 millivolts to +2 volts
  • Input Impedance: 1MEGOhms

• FILTER
  • Filter Type: Voltage-Controlled Low Pass (Moog Ladder Filter)
  • Cutoff Frequency Range:
  • 10Hz to 20kHz
  • Filter Slope: 24dB per Octave
  • Filter Resonance: At Cutoff Frequency
• CONTOUR GENERATORS
  • Attack Time: 1 millisecond to 10 seconds
  • Decay Time: 4 milliseconds to > 35 seconds
  • Sustain Level: 0 to 100% of Contour peak
  • Filter Contour Width: 0 to 4 Octaves
• VOLTAGE-CONTROLLED AMPLIFIERS (VCA)
  • Loudness Contour Dynamic Range: 80dB
• AUDIO INPUT LEVELS
  • 1/4" External Signal Input Voltage: +10 millivolts (min); +10 volt (max.)
  • Nominal Input Impedance: 100KOhms
• AUDIO OUTPUT LEVELS
  • High Level Output Typical Voltage: 0.5 volts
  • Maximum Voltage: 4.2 volts (peak-to-peak)
  • Nominal Output Impedance: 3KOhms
  • Low Level Output (30dB below High level)
  • Typical Voltage: 15 millivolts
  • Nominal Output Impedance: 1KOhms
  • Headphone Output (stereo)
  • Maximum Voltage: 0.3 volts
  • Output Impedance: 8Ohms
• KEYBOARD
  • Key Action: Synthesizer (Spring)
  • Number of Keys: 44
  • Key Range: FO to C4
  • Priority (Low, High, Last): User Selectable
  • Hardwired Connections: Oscillator-1 (Pitch)
  • Oscillator-2 (Pitch)
  • Filter Contour (Trigger) Loudness Contour (Trigger)
  • Switchable Connections: Oscillator-3 (Pitch)
  • Filter (Keyboard Tracking 1/3) Filter (Keyboard Tracking 2/3)
  • Typical Voltage: 0.5 volts
  • Maximum Voltage: 4.0 volts (peak-to-peak)
  • Nominal Output Impedance: 3KOhms
  • Glide Rate (octave): 1 millisecond to 10 seconds
  • Pitch Bend Range: (+/-) 7 semitones|
