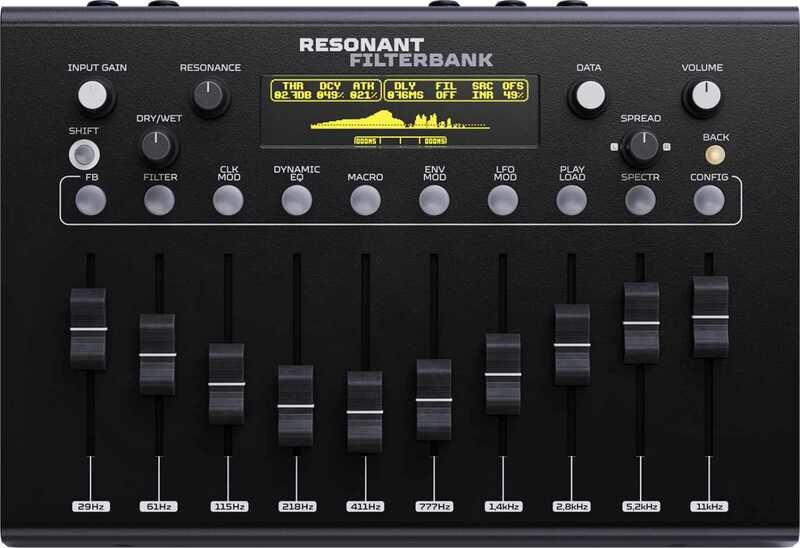

Erica Synths Resonant Filterbank

Desktop Resonant Filterbank is a performance and studio production-friendly FX unit - an analog stereo filterbank.

Product Features

• Analog 10-band stereo filterbank
• Filter frequencies: 29 Hz, 61 Hz, 115 Hz, 218 Hz, 411 Hz, 777
• Hz, 1.5 kHz, 2.8 kHz, 5.2 kHz, 11 kHz
• Filter slope: 17 db/decade
• High quality film capacitors in the bandpass filters
• Manual and MIDI CC controlled bands’ boost and cut
• Configurable resonance feedback loops
• Manual and MIDI CC controlled resonance
• MIDI clock synchronization of events
• Multimode filter mode
• Spectral analyzer mode
• Dynamic spectral compressor mode
• 20 independent LFOs
• 20 independent envelope followers
• User snapshot (preset) memory with 128 slots
• Discrete and morphing snapshot change
• 6.3mm balanced stereo inputs and outputs
• Configurable footswitch input
• DIN 5 MIDI IN and MIDI OUT
• Dimensions: 25,8 x 17,6 x 7 cm (including knobs)
• Mass: 1,1 kg
