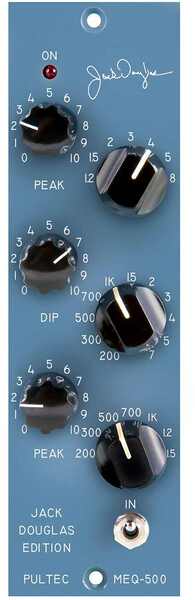

Pulse Techniques Pultec MEQ-500

Artikkelnummer 1091311

MEQ-5 Midrange equalizer for the 500-series

Bestillingsvare

Betal direkte, faktura eller delbetaling - Lagre kort og bankkonto - Enkelt og trygt - Klarna kjøperbeskyttelse

Kr 22506/stk

SPECIFICATIONS

Low-midrange peak boost: 200, 300, 500, 700, 1000, 1200, 1500 CPS, 0 – 10 dB
High-midrange peak boost: 1.2, 1.5, 2, 3, 4, 5, 8 KCS, 0 – 8 dB
Dip Atten: 200, 300, 500, 700 CPS and 1, 1.5, 2, 3, 4, 5, 7 KCS, 0 – 10 dB
Input Impedance: ~600 Ohms
Output Impedance: ~50 Ohms
Noise: Below -80 dBm
Distortion: ≤ 0.15% at 10 dBm into 600 Ohms
Amplifier: 20 CPS to 20 KCS; +0, -1 dB ref 1 KCS including input/output xfmrs
Output Level: +21 dBm maximum
