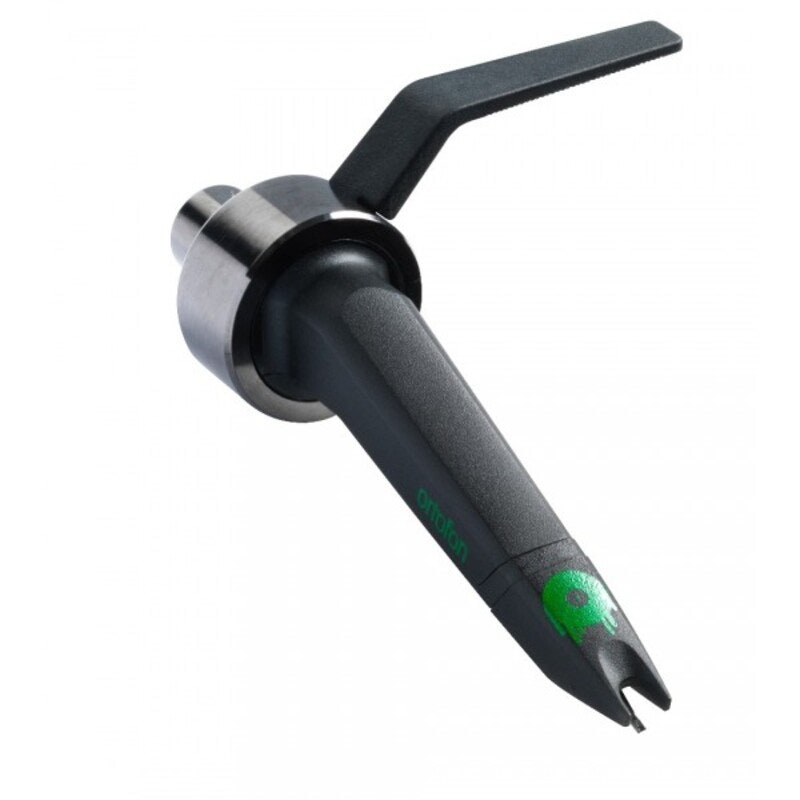

Concorde MKII Mix

The MIX is a general-purpose model for scratch and back-cueing, providing great performance and durability. With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges.

Specifications

• Channel balance at 1 kHz: 1,5 dB
• Output voltage at 1 kHz, 5cm/sec: 6 mV
• Channel separation at 1 kHz: 20 dB
• Tracking ability at 315Hz: 100 μm
• Compliance, dynamic, lateral: 14 μm/m N
• Cantilever material: Aluminium
• Stylus type: Spherical diamond
• Stylus tip radius: R 18 μm
• Tracking force range: 2 - 4 g
• Tracking force, recommended: 3 g
• Internal impedance, DC resistance: 700 Ohm
• Cartridge weight: 18,5 g
• Recommended load resistance: 47 kOhm
• Internal inductance: 450 mH
• Recommended load capacitance: 200-600 pF
• Replacement stylus: Stylus CC MKII Mix
