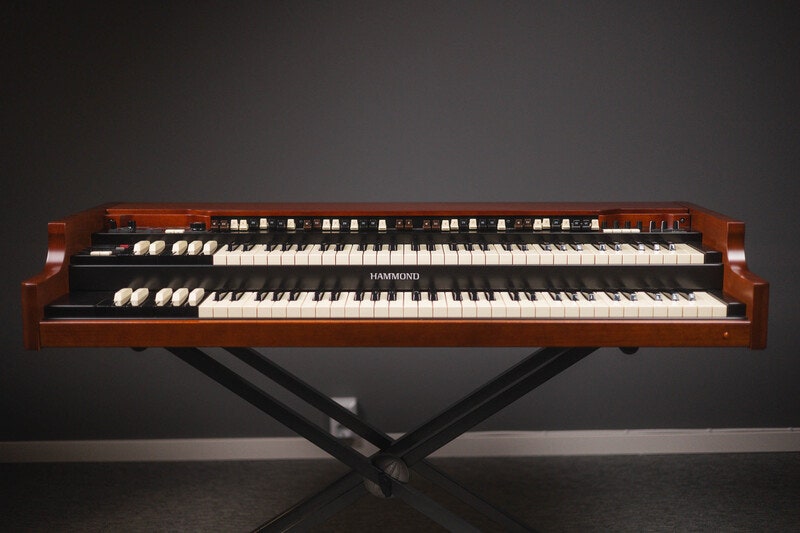

Hammond XK-5 System (XK-5+XLK-5)

NOTE: Used XK-5 organ keyboard from Hammond with accompanying submanual (Hammond XLK-5), 1-Year warranty.

Hammond XK-5

• 73-key waterfall keyboard (61 + 12 preset keys)
• Sound engine: MTW (Virtual Tonewheel Modeling)
• Custom tonewheel
• Touch response percussion
• Chorus
• Vibrato and overdrive
• Multi-effects such as tremolo, wah-wah, phaser, flanger, delay and reverb
• Preset keys: 9 buttons + cancel for both manuals
• 2 freely selectable presets per manual
• 9 programmable preset banks
• 100 factory settings + 100 user patches
• Tube amplifier (12AU7/12AX7 tubes)
• Matching transformer
• Master equalizer
• Leslie with adjustable slow and fast speeds
• Rise and fall times
• Rotor / drum / subwoofer volume balance and microphone settings
• OLED display
• Dimensions (W x D x H): 1190 x 400 x 120 mm
• Weight: 15.7 kg

Connections:

• 2 line outputs 6.3 mm jack (L / Mono, R)
• Stereo headphone output 6.3 mm jack
• USB (A + B)
• 2 MIDI inputs
• 1 MIDI output
• 11-pin Leslie input

Hammond XLK-5

• Lower manual for Hammond XK-5
• 61 keys
• Waterfall keyboard
• Is located on the lower key sleeve and connects itself via H-BUS
