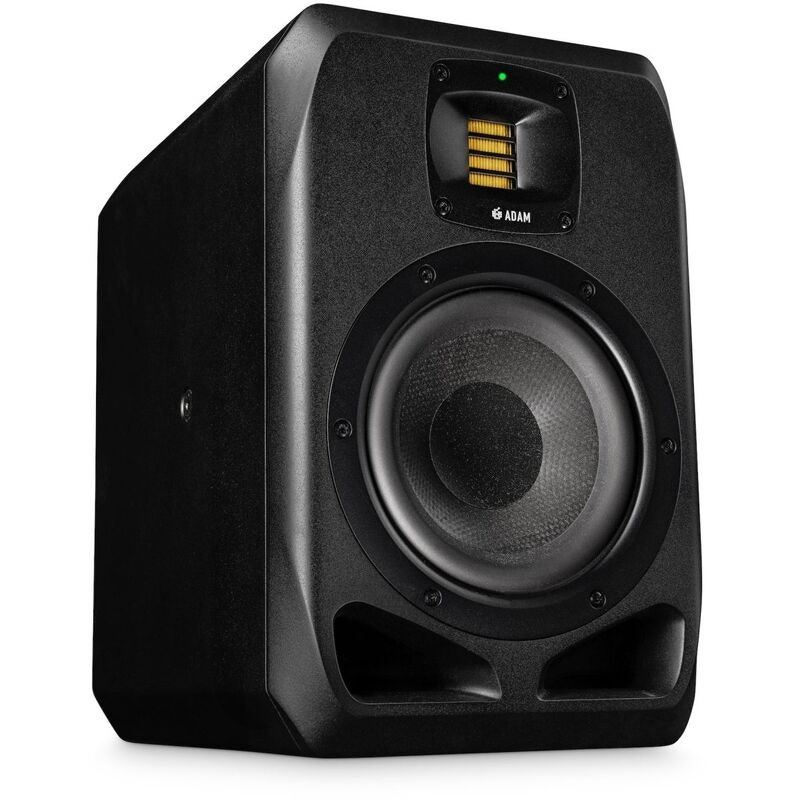

Adam Audio S2V
Artikkelnummer 1025666Active two-way studio monitor, S-ART tweeter with HPS waveguide, 7” Hexacone woofer, DSP processing with AES3 and USB, 350 W RMS, frequency response 35 Hz–50 kHz
-
ADAM Audio S2V – Two-Way Nearfield Monitor
The ADAM Audio S2V is an active two-way nearfield monitor designed for small to medium-sized control rooms. It combines a 7-inch Hexacone woofer and a hand-built S-ART tweeter with an HPS waveguide for precise reproduction and a wide sweet spot. The integrated DSP manages crossover filters, limiter protection, and room tuning, while also providing an AES3 digital input and USB connection for configuration and firmware updates.
Overview and Features
The S2V is built as a compact yet powerful monitor delivering a total RMS output of 350 W. The 7” ELE bass driver covers the 35 Hz–3 kHz range, powered by a 300 W Class D amplifier, while the tweeter is driven by a 50 W Class A/B amplifier. Its custom DSP module optimizes crossover alignment for a linear frequency response, manages high-frequency protection, and allows user-adjustable EQ and voicing to suit different acoustic environments.
Digital signal processing is handled via the AES3 input, and software updates or configuration can be performed through the USB port.Construction and Materials/Components
The tweeter is a German-made, hand-built S-ART unit with an HPS (High Precision) waveguide providing controlled dispersion and accurate stereo imaging. The newly developed 7” Hexacone woofer features a custom SMA magnetic assembly allowing greater voice coil excursion for extended dynamic range. The cabinet is engineered for rigidity and reduced resonance, with a rear-facing bass reflex port.
Connections and Integration
- Analog input: XLR
- Digital input: AES3
- USB port for DSP control and firmware updates
-
Integrated DSP with internal processing and user EQ
-
Control and Workflow
The DSP system manages crossover alignment, limiter protection, and parametric EQ. Users can perform room calibration and save voicing profiles via software interface.
Rear-panel controls include level adjustment, input configuration, and a USB connection for computer control.Detailed Information – Format, Standards, and Compatibility
Format/Standards
Two-way active studio monitor with digital AES3 input.
Cabinet format suitable for small to medium control rooms.Power Supply and Requirements
Internal power supply via IEC mains connection (230 V AC).
Total amplifier power: 350 W RMS (300 W LF + 50 W HF).Environment and Use
Designed for professional mixing and mastering applications requiring accurate frequency response and low distortion. Recommended for use in small to medium-sized control rooms.
In the Box
- Power cable
-
User manual
-
Specifications
- Type/Category: Active two-way nearfield studio monitor
- Format/Dimensions/Weight: Not specified
- Materials/Components: 7” Hexacone woofer, hand-built S-ART tweeter with HPS waveguide
- Frequency Response: 35 Hz – 50 kHz (–20 dB)
- Maximum SPL: ≥ 120 dB per pair at 1 m
- Inputs/Outputs: XLR (analog in), AES3 (digital in), USB (control/service)
- Protocols/Standards: AES3 digital audio
- Power Supply: Internal PSU (230 V AC)
- Compatibility (OS/Software/Format): Not specified
- Included Accessories: Power cable, user manual
- Other: DSP-based crossover, room EQ, limiter protection
