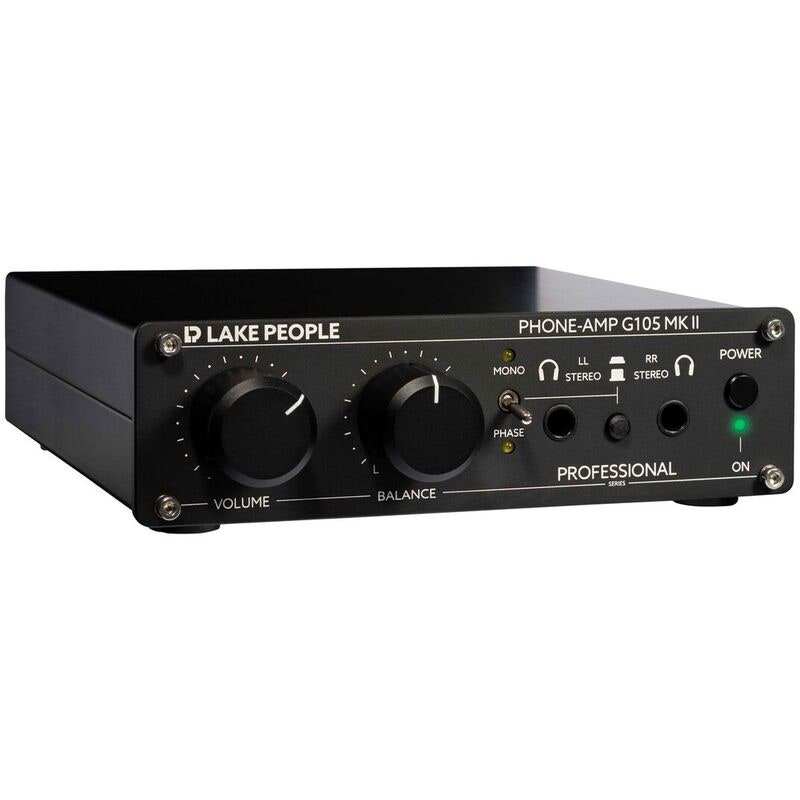

Lake People G105 MKII

Headphone amplifier with balanced signal path and flexible connectivity

The Lake People G105-MKII is a two-channel headphone amplifier designed for environments where high signal integrity and precise control are required. It is suitable for both studio applications and other professional audio systems where a balanced signal path and powerful amplification are necessary.

Balanced and unbalanced connections

The amplifier is equipped with both XLR inputs for balanced signal transmission and RCA inputs for unbalanced sources, offering flexibility when integrating with various types of audio equipment.

Precise volume and balance control

A stepped volume attenuator and left/right balance knob allow for accurate adjustment of listening level and stereo image, making the unit well-suited for critical listening and mixing tasks.

High output for high-impedance headphones

With low output impedance and the ability to deliver up to 2 watts per channel, the G105-MKII can easily drive high-impedance headphones without compromising audio quality.

Desktop design for fixed installations

Thanks to its compact format and 230 V mains power connection, the amplifier is intended for desktop use in fixed setups such as studios or editing suites.

Specifications

• Type: Headphone amplifier
• Inputs: 2 x XLR (balanced), 2 x RCA (unbalanced)
• Outputs: 2 x 6.3 mm headphone jacks
• Controls: Stepped volume control, L/R balance
• Dynamic range: > 126 dB
• Output impedance: < 0.125 Ohms
• Input impedance: 10 kOhm
• Input sensitivity: +6 dBu
• Signal-to-noise ratio (SNR): < -100 dB (A-weighted)
• Frequency range: 5 Hz – 150 kHz
• Crosstalk: -95 dB (1 kHz), -85 dB (15 kHz)
• Amplifier channels: 2
• Power supply: 230 V power cord
• Form factor: Desktop
• Dimensions: 19 x 5 x 16.5 cm
• Weight: 1.2 kg
