ART DPS II

NOTE: Used microphone preamp from ART. See pictures for condition. 6 month warranty.

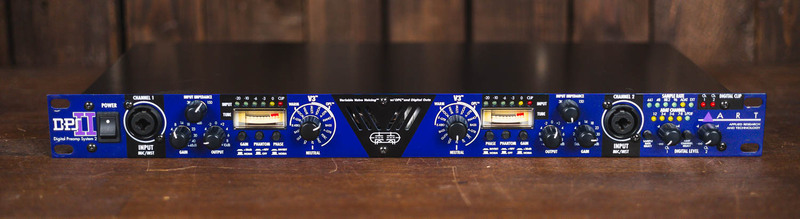

ART DPS II – Digital Preamplifier System with Variable Tube Character

Flexible signal adaptation with improved tube technology

DPS II is a digital preamplifier system that combines analog warmth with high-resolution digital conversion. The amplifier automatically switches between instrument and microphone mode, making it ideal for a variety of studio applications. With 24-bit/96kHz A/D conversion and upgraded V3 presets for tube character, you get a warm and musical sound profile, regardless of signal type.

Improved control and clear signal monitoring

With LED indicator for input level and an analog output meter, you get a direct overview of the signal flow. The wide frequency response between 5Hz and 50kHz provides a natural reproduction without coloration. An improved OPL limiter protects against overload at the output.

Connections and Sync

The DPS II offers both ADAT and S/PDIF optical outputs, as well as Wordclock for sync. The units can run at internal sample rates of 44.1kHz up to 96kHz, or sync externally via BNC or ADAT. The system also supports the re-routing of unused ADAT data.

Features at a glance

• Variable input impedance
• 24-bit/96kHz A/D conversion
• V3 presets with tube character (Variable Valve Voicing)
• Automatic switching between instrument and microphone mode
• LED input meters and analog output meters
• Wide frequency response (5Hz–50kHz)
• OPL output limits
• Enhanced ART Tube Technology
• Sync via ADAT or Wordclock
• Tube type: 12AX7A – Dual Triode

Specifications

• Dynamic range: >100dB
• Equivalent input noise: -129dBu (A-weighted, XLR)
• Inputs/outputs: 1/4" RTS (unbalanced), XLR
• Max gain: 80dB (XLR to XLR), 74dB (instrument to XLR)
• Max input level: +19dBu (XLR), +22dBu (instrument)
• Max output level: +28dBu (XLR), +22dBu (1/4")
• Sampling Frequency: Internal 44.1, 48, 88.2, 96kHz / External Wordclock or ADAT
• Phantom Power: +48V
• Total Harmonic Distortion: 0.01% (clean), 0.1% (warm)
• Weight: 2.2 kg
• Dimensions: 5.5" deep × 19" wide × 1.75" high
