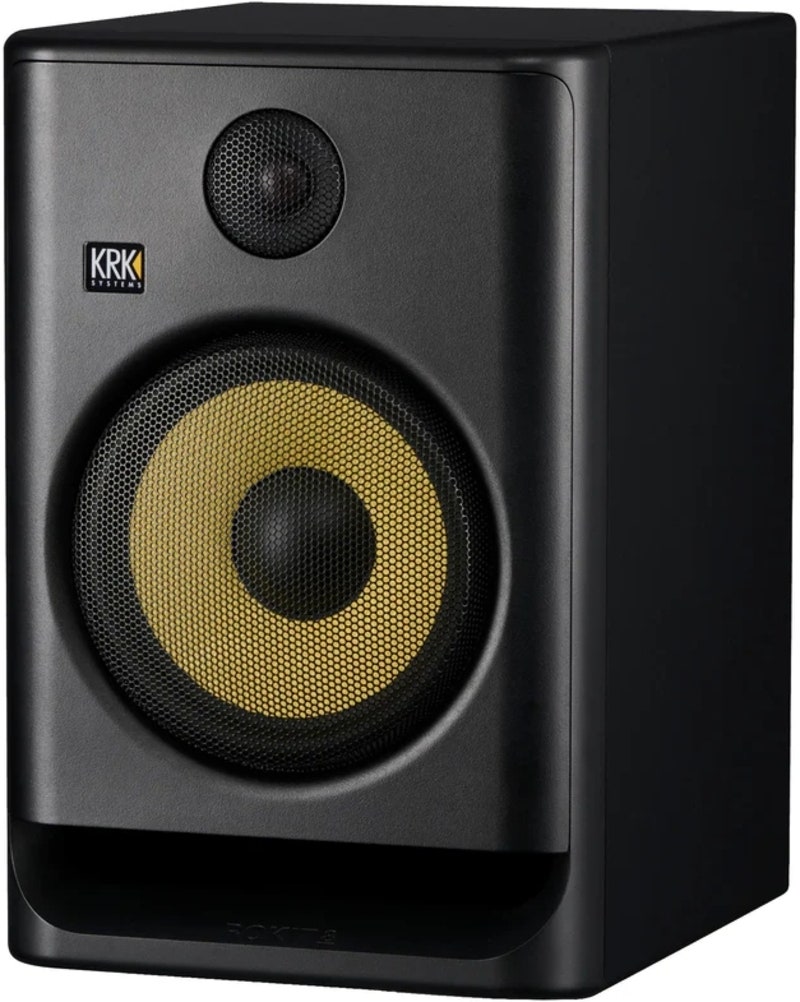

Elevate your audio production to new heights with KRK Systems’ Rokit Generation Five product line that caters to the diverse needs
of musicians, producers, and sound engineers worldwide. Whether you’re working on a chart-topping hit, a film score, or a personal
project, KRK Systems Rokit Generation Five monitors provide the tools you need to capture every nuance of your sound with
astonishing clarity. Rokit Generation Five has three very useful voicing modes. Mix Mode, with flat frequency and phase response, is
best for mixing, mastering, and critical listening. Create Mode is a more inspirational voicing best used for writing, producing, and
casual listening. Focus Mode is a mid-focused voicing for critical analysis of the midrange band where vocals and most instruments
have the most energy. They feature 25 boundary and tuning EQ combinations that help minimize and correct problems in your
acoustic environment and woven Kevlar® aramid fiber cone woofers for superior damping and modal breakup control. The tweeters
benefit from a highly damped acoustic silk dome diaphragm to smoothly extend the frequency range up to 40 kHz. For maximum
transient response and dynamics reproduction, bi-amplified Class D power amplifiers drive the transducers evenly and more
efficiently at reduced operating temperatures to ensure audio integrity during long work sessions.





Specifications

Configuration	2-Way Bass Reflex
System Type	Active Studio Monitor
Low-Frequency Driver	Woofer, 8-inch, woven Kevlar® aramid fiber cone, ferrite magnet
High-Frequency Driver	Tweeter, 1-inch, Silk Dome, Copper Cap, ferrite magnet
Frequency Response (+/- 3 dB)	42 Hz – 36 kHz
Frequency Range (+3/-10 dB)	32 Hz - 40 kHz
Crossover Frequency	1.64 kHz
Amplifier Configuration	Bi-amplified (Class D)
HF Amp Power Output*	68 Watts
LF Amp Power Output*	135 Watts
Total Power*	203 Watts
Total Dynamic Power Output**	312 Watts
Max SPL***	111 dB
155° Horizontal x 133° Vertical
Analog Input Connector	Balanced XLR / 1/4” TRS Combo
Input Impedance	5.12kΩ Balanced
SNR (Signal to Noise Ratio)	>94 dB (Low Sensitivity setting, balanced), >91 dB (High Sensitivity, unbalanced)
AC Input Voltage	100 – 240VAC (+/- 10%), 50/60 Hz
Fuse Type	5x20 mm T1.6A 250V
Enclosure Construction	PVC Vinyl Wrapped MDF
Baffle Construction	Structurally Reinforced High Impact Polystyrene
Product Dimensions (H x W x D)	15.75” (400 mm) x 10.47” (266 mm) x 12.56” (319 mm)
Packaged Dimensions (H x W x D)	20.47” (520 mm) x 13.78” (350 mm) x 15.35” (390 mm)
Product Weight	23.04 lbs. (10.45 Kg.)
Packaged Weight	28.66 lbs. (13 Kg.)
