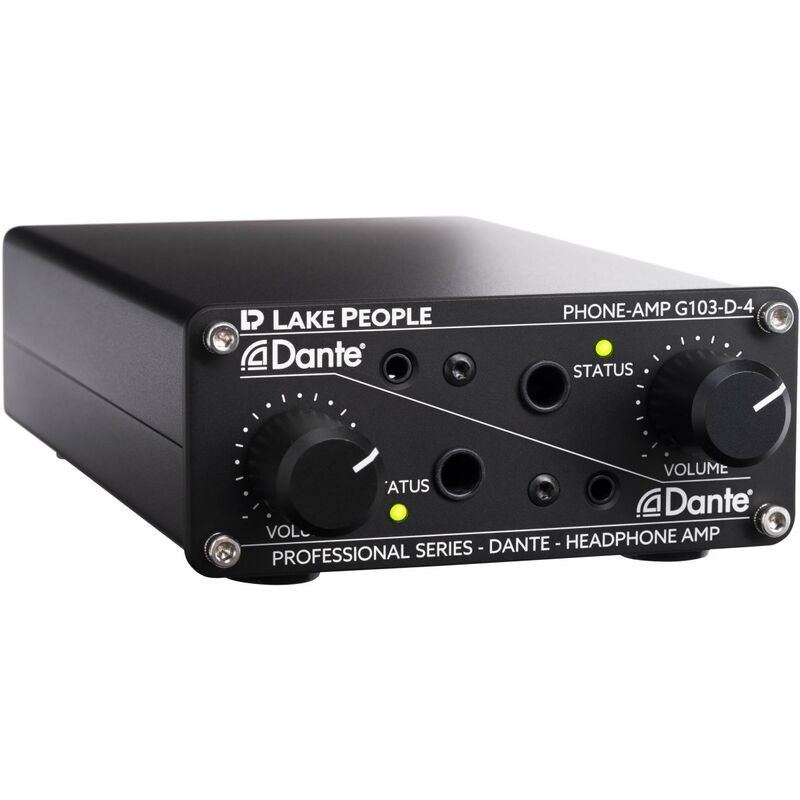

Lake People G103-D4 Dante

Dante-Based Headphone Amplifier for Professional Audio Environments

The Lake People G103-D4 is a Dante-connected headphone amplifier designed for seamless integration into modern audio systems. Suitable for both studio production and live applications, it offers stable digital signal transmission and precise audio reproduction.

Dante Network Connectivity

The amplifier receives audio via a Dante network, enabling low-latency digital audio transmission over standard Ethernet. It is compatible with professional setups where multiple devices interact across the same network.

Three Headphone Outputs with Independent Control

G103-D4 features two 6.3 mm and one 3.5 mm headphone outputs, allowing multiple headphones to be connected simultaneously. Two separate level controls enable individual volume adjustment.

Analog Signal Path with High Output Power

Despite its digital input, the amplifier uses an analog internal amplification path with four power op-amps. Its low output impedance and high power output make it suitable for both low- and high-impedance headphones.

Compact Design and USB Power

The G103-D4 is designed for desktop use and powered via USB-B or USB-C, offering flexibility in both stationary and mobile audio setups.

Specifications

• Type: Headphone amplifier with Dante connectivity
• Inputs: 4-channel Dante (via Ethernet)
• Outputs: 2 x 6.3 mm, 1 x 3.5 mm headphone outputs
• Volume Controls: 2 x stereo volume controls (ALPS RK14 stepped attenuators)
• Internal Circuitry: 4 x power op-amps
• Dynamic Range: < 105 dB (A-weighted)
• Signal-to-Noise Ratio: -102 dBu (A-weighted)
• Output Impedance: < 1 Ohm
• Frequency Range: 5 Hz – 90 kHz
• Crosstalk: -90 dB (1 kHz), -70 dB (15 kHz)
• Power Supply: USB-B or USB-C
• Form Factor: Desktop
• Dimensions: 19 x 5 x 10.5 cm
• Weight: 0.8 kg
