Lake People F812

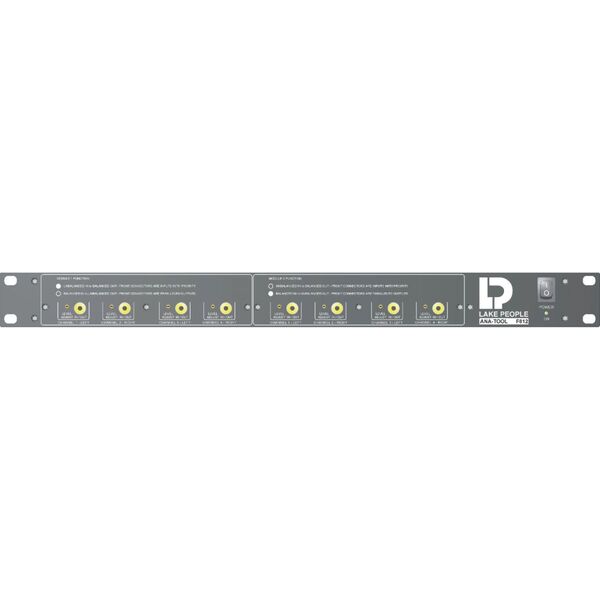

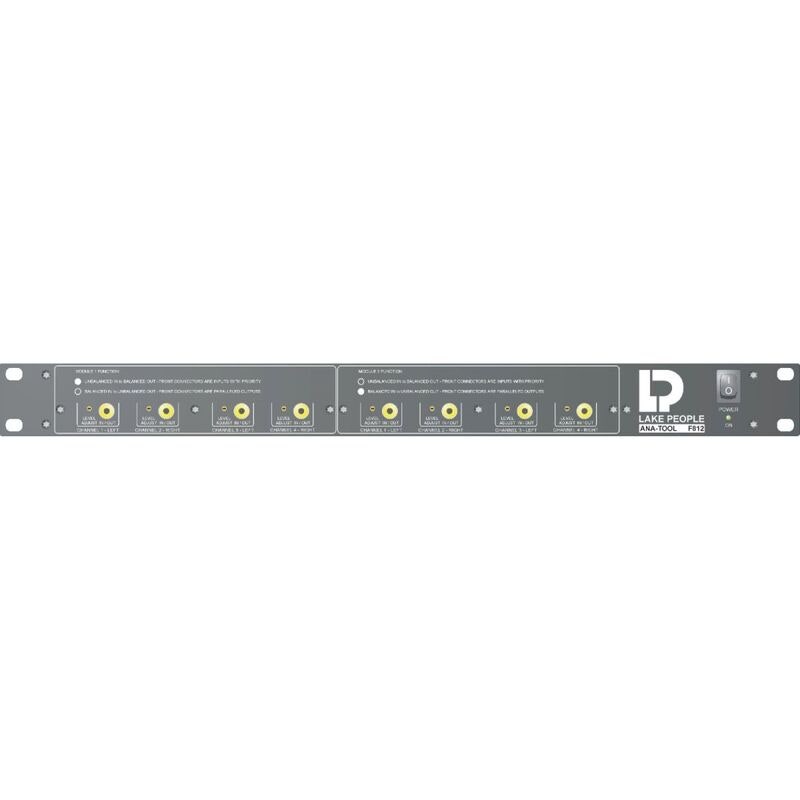

Lake People F812 – Stereo Level Converter for Professional Audio

Signal Conversion

The Lake People ANA-TOOL F812 is a stereo balancing unit designed to convert unbalanced audio signals into balanced signals with high precision. It is intended for environments where signal integrity is essential, such as studios, broadcast, and live sound applications.

Signal Handling and Noise Performance

The F812 uses high-quality analog circuitry to ensure very low noise and minimal distortion. This preserves the purity of the audio signal even during long cable runs or in complex setups. Independent level controls for each channel allow precise input adjustment for optimal matching between different audio sources.

Connectivity and Applications

Equipped with balanced XLR and TRS outputs, the F812 fits professional studios and live environments. It also addresses ground loop issues, reducing interference and hum in the audio chain. The unit is housed in a robust 19-inch rack chassis designed for reliable operation in demanding settings.

Features

• Converts unbalanced stereo inputs to balanced outputs
• Very low noise and distortion
• Independent level controls per channel
• Balanced XLR and TRS outputs
• Ground loop reduction to minimize interference
• High headroom and wide frequency response

Specifications

• Type: Analog level converter, stereo
• Inputs: 8 x RCA
• Outputs: 4 x XLR / 4 x RCA
• Frequency response: 5 Hz – 70 kHz (-1 dB)
• Input impedance: 50 kOhm / 20 kOhm
• Rack spaces: 1U
• Dimensions: 48 x 5 x 18.5 cm
• Weight: 2.45 kg
• Power supply: Internal 230 V / 115 V AC
• Max input voltage: Module 1: > +21 dBu / Module 2: > +25 dBu
• Max output level: According to module specifications
• THD+N: < -100 dB (@ -1 dBFs)
• Crosstalk: < -100 dB (@ 15 kHz)
• Gain range: Module 1: -3 to +21 dB / Module 2: -21 to +3 dB
