Manley Dual Mono Microphone Preamplifer

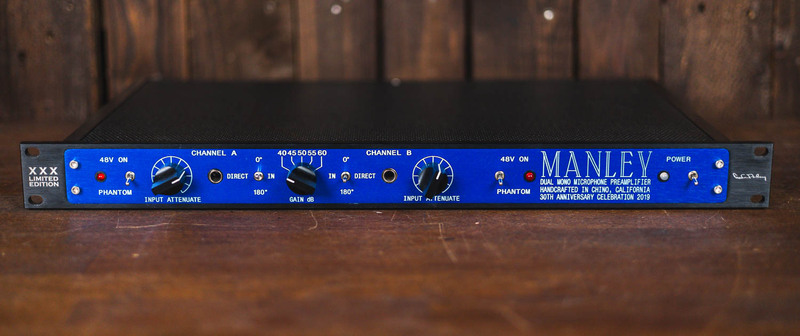

NOTE: Used preamp from Manley. See pictures for condition. 6 month warranty.

Manley Dual Mono Microphone Amplifier

Manley's Dual Mono Microphone Preamplifier gives you two channels of classic Manley tone and offers 40 to 60 dB of gain. Gain is adjustable in precise 5 dB increments, and together with the variable input attenuation you can easily shape the sound from soft to aggressive. Additionally, there are 1/4" inputs on the front panel, perfect for giving basses, drum machines, keyboards and other instruments the rich Manley tube character.

Key Features:

Two channels with 48V phantom power and phase reversal
Each channel has individual phantom power and phase switches for maximum control.

Gain switch for variable feedback
Adjust the amount of feedback in the tube circuit to shape the tone from relaxed and warm to clear and powerful.

1/4" direct inputs
Connect instruments directly and give them a rounder, fuller tube character. Note that the gain in this mode is 20 dB lower than what the front panel shows.

Balanced and unbalanced outputs
Choose between transformer-coupled balanced outputs for a powerful sound or capacitor-coupled unbalanced outputs for a cleaner and more direct sound.

Specifications:

• MANLEY input and output transformers with nickel lamination in mu-metal housing
• Frequency response: 10 Hz – 60 kHz (flat)
• PHASE REVERSE switch on microphone input
• Microphone input impedance: 2400 Ohm
• Built-in 48V phantom power
• Hi-Z (100 kOhm) 1/4" direct input
• Conductive plastic noiseless input attenuators
• THD: < 0.05% at 1 kHz
• Signal-to-noise ratio: 80 dB
• Equivalent input noise (EIN): -125 dB
• Adjustable GAIN/FEEDBACK in 5 dB steps (40–60 dB)
• High current output < 50 Ohm LO-Z (1/4" & XLR)
• Automatic mute with warm-up delay on start/stop
• Max. input signal (with pad fully open): 450 mV
• Max. output: +32 dBu
• Max. output into 600 Ohm load: +15 dBm
• Power consumption: 36 watts
