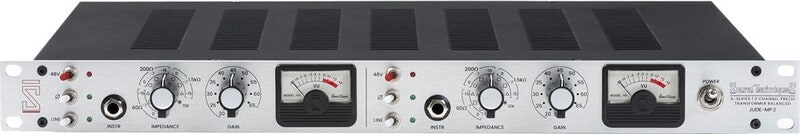

Warm Audio JUDE-MP2

Authentic British console tone for the modern studio. Created in official collaboration with legendary console builder Sound Techniques, the Warm Audio Jude-MP dual channel microphone preamp delivers the exact A-Range preamp circuit used in the original Trident Studios custom consoles. Experience the depth, punch, and iconic character heard on timeless records by The Beatles, David Bowie, Queen, and Elton John.

Tech Specs

- Dual-Channel, Dual-Discrete Console Microphone Preamp

- Variable Input Gain Based On Z-Match Impedance Setting

- Preamp Gain: 65 - 76dB [40Ω Source Impedance]

- Custom-Wound, 3-Impedance CineMag Input Transformers

- Custom-Wound, High-Purity Nickel CineMag Output Transformers

- Variable Mic Input Impedance: 60Ω | 200Ω | 1.5KΩ

- Nichicon Audio Grade & Wima Capacitors

- EIN -128 dBu (A-wtd)

- Self-Noise : -99 dBu (A-wtd)

- THD : 0.008%

- 48v Phantom Power | Polarity Switch | Line-Level Switch

- Inputs: XLR Mic | TS/TRS ¼"

- Outputs: XLR / ¼" TRS Line-Level

- Frequency Response: 10 Hz - 25 kHz (+/-2dB)

- Aluminum Faceplate. Steel Chassis & VU Meter Level Indication
