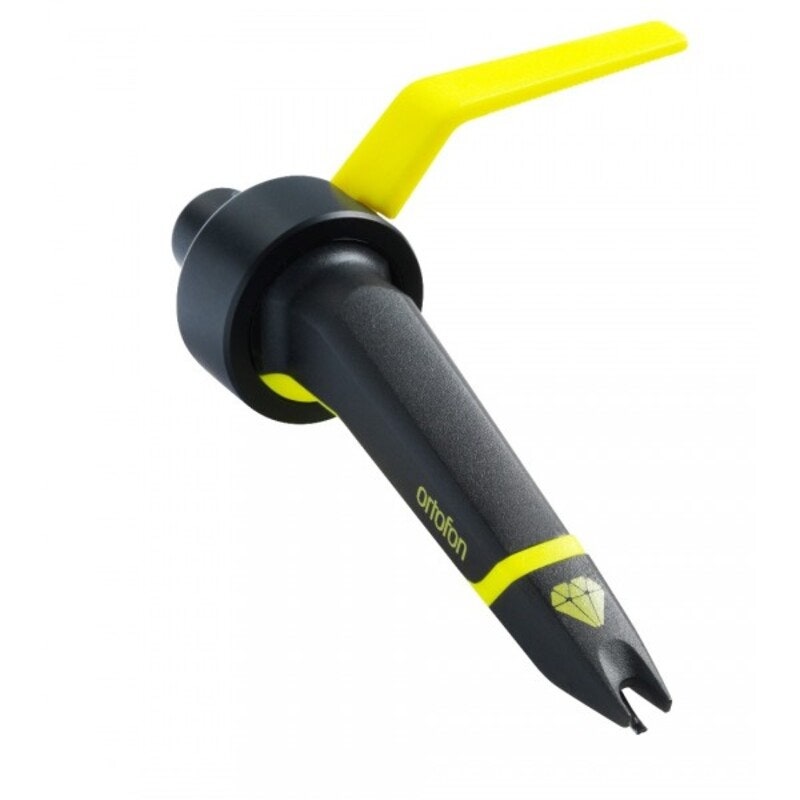

Ortofon Concorde MKII Club

Concorde MKII Club

The Concorde CLUB delivers exceptional sound quality and an elevated output voltage for a powerful, energetic audio experience. With its outstanding specifications and remarkable sound profile, the CLUB stands as a prime selection for Club DJs across various settings – be it the studio, broadcast, or club venues.

Specifications

• Channel balance at 1 kHz: 1 dB
• Output voltage at 1 kHz, 5cm/sec: 8 mV
• Channel separation at 1 kHz: 25 dB
• Tracking ability at 315Hz: 100 μm
• Compliance, dynamic, lateral: 14 μm/m N
• Cantilever material: Aluminium
• Stylus type: Special Elliptical diamond
• Stylus tip radius: r/R 13/25 μm
• Tracking force range: 2 - 4 g
• Tracking force, recommended: 3 g
• Internal impedance, DC resistance: 1000 Ohm
• Recommended load impedance: 200-600 pF
• Cartridge weight: 18,5 g
• Recommended load resistance: 47 kOhm
• Internal inductance: 650 mH
• Replacement stylus: Stylus CC MKII Club
