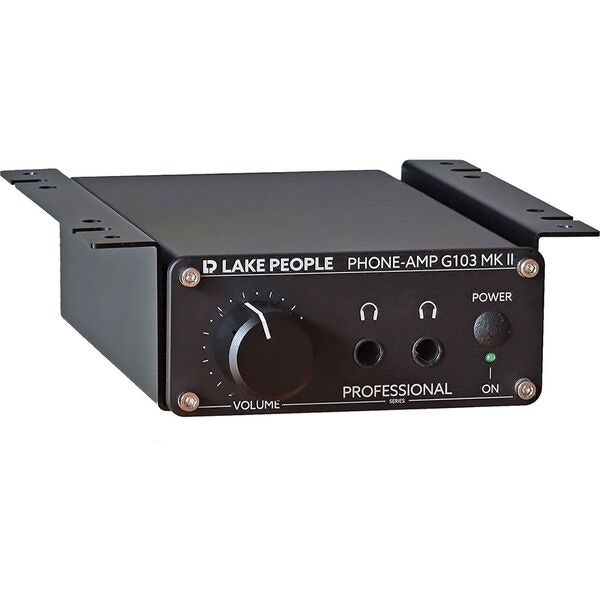

Lake People G103-PBV MKII - Headphone Amp

Lake People G103-PBV MKII – Headphone Amplifier for Professional Use

Designed for Studios and Broadcast

The Lake People G103-PBV MKII is a headphone amplifier intended for professional environments such as recording studios, broadcast, and high-quality listening. The amplifier features both balanced and unbalanced inputs, providing flexibility for various connections.

Sound Quality and Performance

With very low distortion and high output power, the unit delivers clean and dynamic sound. It is capable of driving both low- and high-impedance headphones, making it suitable for a wide range of models and listening scenarios.

User Control Features

The amplifier includes a two-stage gain control to adjust amplification according to headphone sensitivity. It also offers two 6.3 mm headphone outputs, allowing simultaneous connection of two headphones without signal loss.

Construction and Design

The unit is built with precise German engineering and features a sturdy metal chassis. Its compact dimensions fit well on studio desks and in home environments. Power is supplied via a mains cable.

Specifications

• Type: Headphone amplifier
• Inputs: 2 x XLR
• Headphone outputs: 2 x 6.3 mm TRS
• Volume control: Stereo, stepped
• Form factor: Desktop
• Power supply: 230 V mains cable
• Dimensions: 19 x 5 x 10.5 cm
• Weight: 0.8 kg
• Dynamic range: <124 dB (A-weighted)
• Distortion and noise level: SNR < 102 dBu (A-weighted)
• Frequency response: 5 Hz – 150 kHz
• Output impedance: 0.1 Ohm
• Max input voltage: +21 dBu
• Input sensitivity: +6 dBu
• Crosstalk: -90 / -70 dB at 15 kHz
