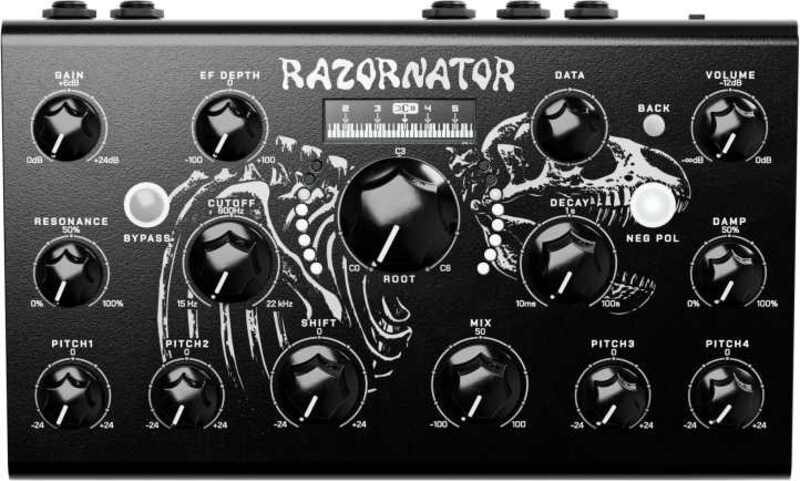

Erica Synths Razornator

A unique stereo FX unit with an algorithm developed by Dutch company 112dB, the Razornator features 5 chromatically tuned resonating delay lines that can emulate the resonance of physical objects – bodies of instruments, rooms, structures. Chromatic tuning of the resonating delay lines makes the effect particularly musical, because it allows for aligning them in chord-like intervals, while the built-in envelope follower adds dynamics to the processed signal. Featuring 12 parameters for detailed sound design, save/recall functions for all parameters, MIDI control over all parameters and a sleek aluminium case to match our lineup of compact desktop units, the Razornator will let your setup take flight in any live show, studio or sonic experiment.

The Razornator combines several well considered and tuned “modules” for stereo audio processing with the aim of altering the harmonic content of the incoming signal. The signal path starts with an audio GAIN STAGE that boosts signals up to +24dB (it can effectively act as an analogue overdrive), then the signal is fed through the lowpass FILTER with a RESONANCE control and after filter treatment it passes through five chromatically tuned DELAY-BASED RESONATORS that can be manually tuned or controlled by the ENVELOPE FOLLOWER. After the resonators, the signal is summed and limited by the COMPRESSOR, then mixed with the dry signal and passed through the EQUALIZER and finally is sent to BALANCED OUTPUT stage.

Short description: Five-voice chromatic stereo resonator

Features:

• 5 chromatically tuned resonating delay lines
• Chromatic tuning
• Built-in envelope follower
• Save/recall functions for all 12 parameters
• Preset morphing
• Resonators tunings playable via MIDI
• Configurable footswitch input
• True stereo signal path

Premium aluminum enclosure
