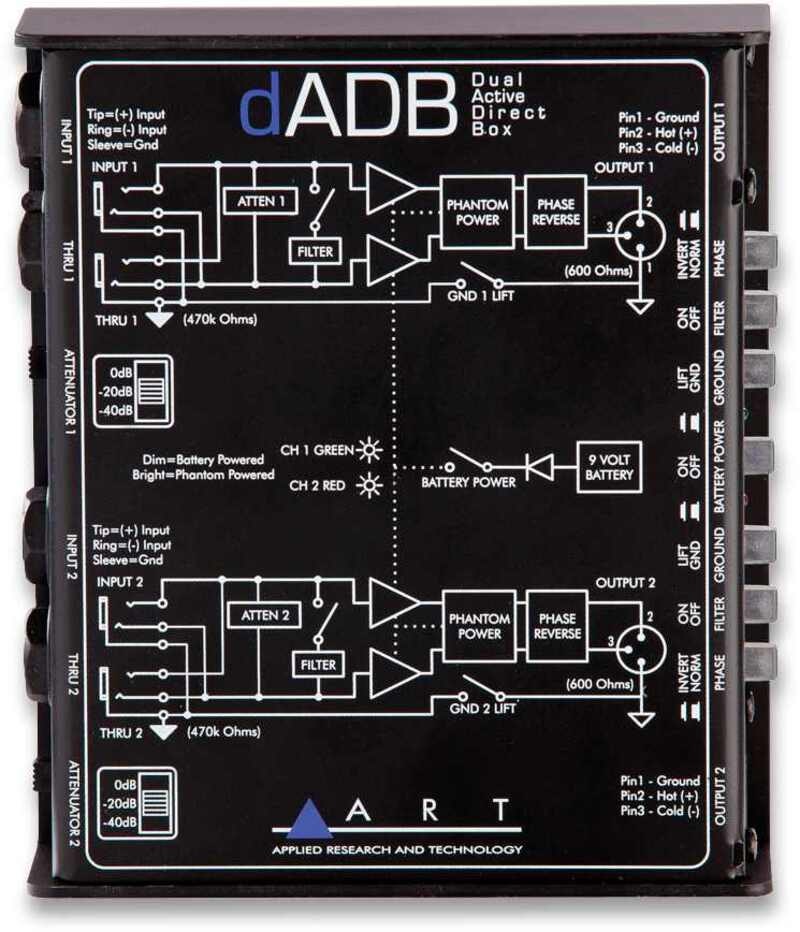

ART DADB

The ART dADB dual active direct box acts as two independent, high quality active interfaces for connecting instrument, line, or speaker level signals to balanced inputs. The high impedance ¼-inch inputs are buffered and converted by extremely low noise active electronics to deliver isolated, balanced, low impedance outputs.

Key Features

• Fully Active Design
• Operates on Phantom Power or 9V Battery
• Converts High-Impedance Balanced / Unbalanced Inputs Into 600 ohm Balanced Outputs
• Switchable Input Attenuation (0, -20, -40 dB)
• Independently Switchable Low Pass Filter on each Channel
• Independently Switchable Phase Invert on each Channel
• Independently Switchable Ground Lift on each Channel
• 1/4-inch TRS Connector Inputs and Thru Connections
• XLR Connectors for Balanced Outputs
• Rugged Steel Case
