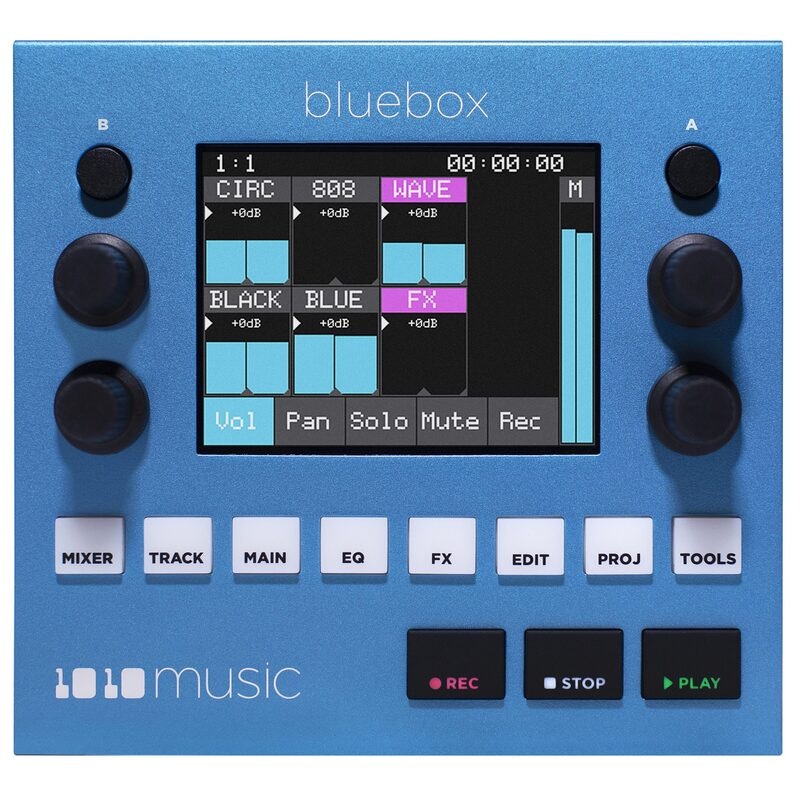

Compact Digital Mixer/Recorder
Bluebox is the portable digital audio mixer that integrates your electronic music gear. Connect your eurorack, sampler, drum machine and synthesizer outputs to 6 stereo, 3.5 mm TRS inputs and map them to 12 mono tracks or 6 stereo tracks – all with independent control for recording and playback. It’s that keyboard mixer with live performance features that you always hoped someone would make.
- Mix 12 mono/6 stereo tracks of live or prerecorded sound.
- Independently route each track to any combination of three stereo outputs:
- Stereo Output 1 – Main mix
- Stereo Output 2 – Assignable, with dedicated sub-mixer (pre or post fader)
- Stereo Output 3 – Headphone output, with dedicated sub-mixer (pre or post fader)
- Control one parameter for multiple tracks at once in Mixer mode.
- Focus on one track at a time in Track mode.
- Adjust the level or mute state of each output independently.
- Use touch gestures or knobs to tweak your sound with four band EQ per track with support for Low Cut/Low Shelf, Parametric, and High Shelf/High Cut settings for each band.
- Apply high-quality Reverb and Delay effects with independent effects sends for each track.
- Override the headphone output with the Main mix on demand.
- Maximize the loudness and unify your mix with the built-in global compressor
- Sync to external clocks through the MIDI Input and Output.
- Record hours of music as 48k, 24 bit WAVs directly to the microSD card as multi-track or as the main stereo mix.
- Playback previously recorded tracks while recording new ones.
- Load firmware updates through the microSD card.
- Mix electronic music gear such as the 1010music blackbox, eurorack modules, drum machines, samplers and synthesizers.
- Save and recall Project settings including all parameters for tracks, outputs, EQ and effects.
- Plug into a power outlet, or use with your USB Power Bank for hours of use on the go.
- Fit it into a small spot on your desk and then tuck it in your pack for the next gig.
What Is Included
When you purchase bluebox, you will receive:
- Bluebox digital recording mixer
- A microSD card with bluebox firmware and pre-loaded project files
- A USB power cable and AC adapter with 3 international adapters
- 2 MIDI Adapters – Male 3.5 mm TRS to Female 5 pin DIN, MIDI Class B standard
- A Quick Start guide to show you the basics (full user manual available online)
- 6 stereo 3.5 mm TRS inputs
- 12 mono tracks, 6 stereo tracks or something in between
- 3 independently controlled stereo 3.5 mm TRS outputs
- Lots of headroom with support Eurorack levels up to +/-5V inputs and outputs
- 3.5” touch screen, 4 knobs, 8 navigation buttons and 3 transport buttons
- 3 effects: reverb, delay and compressor
- Records and plays back 48k, 24-bit audio WAV files
- 4 band EQ per track
- MIDI In and Out for beat syncing effects
- Dimensions: 5.5″ x 5″ x 2″ (14 cm x 13 cm x 5 cm), 1 lb (450 grams)
- Durable metal case
