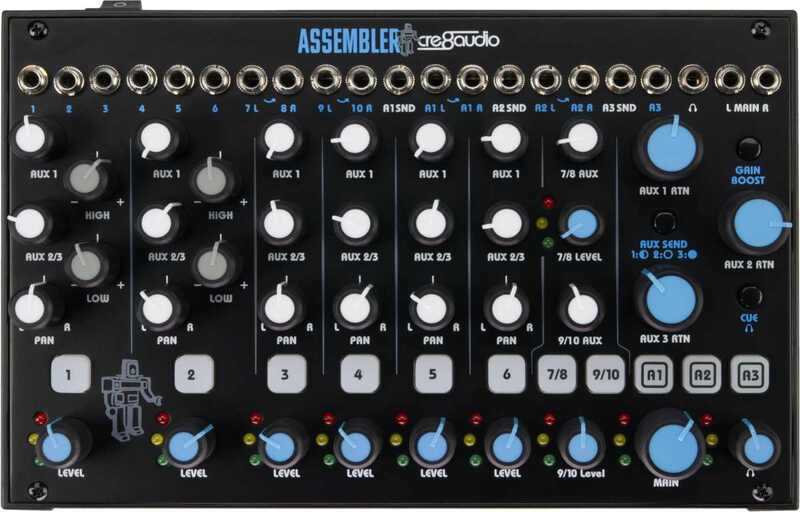

Cre8audio Assembler

Assembler, a synth-focused audio mixer meticulously engineered to deliver unmatched vintage mixing console sound and intuitive, hands-on control. Developed in partnership with the renowned Pittsburgh Modular Synthesizers team

• Audio Channels: 10
• 2 Complex Mono Channels: Vintage Inspired EQ, Up To 20x Gain Boost, Dual Aux Sends (1 Assignable), Pan, Mute, Assignable Cue Monitoring, 3 Stage LED Meter, Analog Tape Saturation
• 4 Standard Mono Channels: Up To 20x Gain Boost, Dual Aux Sends (1 Assignable), Pan, Mute, Assignable Cue Monitoring, 3 Stage LED Meter, Analog Tape Saturation
• 2 Stereo Channels: Up To 20x Gain Boost, Assignable Aux Send, Pan, Mute, Assignable Cue Monitoring, 3 Stage LED Meter, Analog Tape Saturation
• 3 Aux Sends: Mono, Post-Fader
• 2 Stereo Aux Returns: Up To 2.7x Gain, Mute, Assignable Cue Monitoring, Analog Tape Saturation
• 1 Mono Aux Return: Up To 2.7x Gain, Mute, Assignable Cue Monitoring, Analog Tape Saturation
• Independent Main and Cue Output Levels
• Eurorack and Line Level Compatible
• Can be used standalone in its included case or removed and used as a eurorack format module
• Specifications for when used as a eurorack module

• Width when used as a module = 40hp
• Depth = 30mm
• 380mA power draw when running +12V rail
• 275mA power draw when running -12V
• Reversed power polarity protection.

• 207mm x 138mm x 61mm
• 845g
• Included in the box - 1x Assembler, 1x Assembler wall-wart power supply, 1x 3.5mm to 5 pin (Type “A”) MIDI Din pigtail
