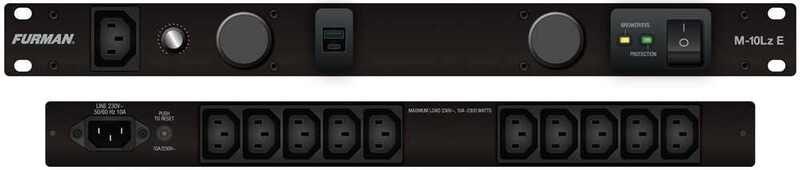

Furman M-10Lz E

As the premium flagship model in the Merit Z Series, the Furman M-10Dz E provides total control and visibility over your rack’s power environment. In addition to the comprehensive EVS protection, RFI/EMI noise filtration, dual fast-charging USB ports, and dimmable RGBW pull-out lights found in the Lz model, the Dz edition features a striking Dynamic Voltmeter on the front panel.

This digital voltmeter continuously tracks and displays the incoming AC line voltage in real-time. To ensure instant situational awareness, the numeric display dynamically changes color and flashes based on voltage health: solid Green for safe standard voltage (220-240 VAC), slow-flashing Yellow for cautionary marginal boundaries (212-219 VAC or 241-248 VAC), and rapid-flashing Red for dangerous under- or over-voltage levels (below 211 VAC or above 249 VAC). This makes it an indispensable tool for touring racks, regional venues, and critical recording environments where fluctuating main power poses an ongoing threat to high-end audio processors and computers.

Extreme Voltage Shutdown

EVS protects connected equipment by instantly disconnecting power during dangerous over or under

voltage events, preventing damage, downtime, and costly repairs.

Fast charging USB-C and USB-A ports

Ample power for interfaces, pedals, wireless units – right from the rack or pedal setup.

Tuneable RGBW Pull-out Lights

Light up your rack for fast, clean setups in dark venues, studios, and install closets. Set the mood with selectable colors for stage vibe, studio ambiance, or a clean white work light.

Status Indicator Lights

Front panel diagnostic LED lights for Breaker/EVS and Protection status.

Tech Specs

- Output Current: 10 Amps maximum

- Operating Voltage: 230 VAC, 50/60 Hz

- Rack Illumination: Dual tuneable RGBW pull-out LED light tubes with dimming and color cycle button

- Over/Under Voltage Protection: Extreme Voltage Shutdown (EVS) with automated reset

- Filtration: AC Noise Filtration (RFI / EMI reduction)

- USB Ports: 1x USB-C (5V / 3A fast charging), 1x USB-A (5V / 2.4A fast charging)

- Status Indicators: Front-panel LEDs for Breaker/EVS status (Flashing Yellow/Red) and Protection OK

- Circuit Breaker: Resettable 10A thermal breaker on rear panel

- Chassis: 1U Standard 19" rackmount
