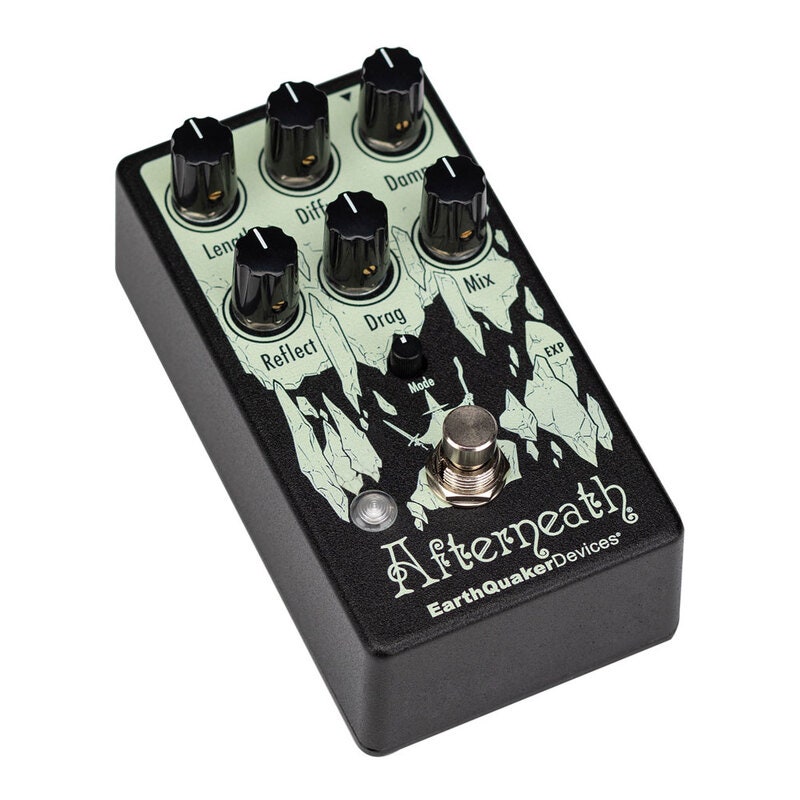

EarthQuaker Devices Afterneath V3
Artikkelnummer 1066228Reverb pedal, Drag modulation, 9 scale and quantization modes, expression/CV control, feedback control, buffered bypass, mono, 100 mA
EarthQuaker Devices Afterneath V3 Reverberation Machine
Reverb Pedal with Creative Controls and Modulation Options
Soundscapes with Distinct Character
The Afterneath V3 is a digital reverb pedal that builds soundscapes based on a combination of short digital delay lines. By adjusting these lines, the effect ranges from dense, atmospheric reverbs to scattered, rhythmic echo patterns.
Control Functions
Length
Controls the decay time of the reverb tail.
Diffuse
Adjusts the spread of the reverb reflections. Turning counterclockwise gives a sharper attack with a stuttering quality, while turning clockwise creates a softer, more diffuse sound.
Dampen
Shapes the tone of the reverb. Counterclockwise settings produce a brighter sound, while clockwise results in darker, more mellow tones.
Drag
Offsets the individual delay lines, allowing everything from dense reverb textures to wide, ping-pong-like delays. The Drag parameter can also be controlled via CV or expression pedal and works in nine selectable modes, changing its behavior significantly.
Mode
Selects one of nine modulation modes for the Drag control, including both unquantized and scale-quantized settings:
- Unquantized
- Unquantized with Slew
- Unquantized Volt/Octave
- Chromatic Scale
- Major Scale (Lydian)
- Minor Scale
- Pentatonic Scale
- Octaves & Fifths
- Octaves
Reflect
Controls the amount of feedback and reverb regeneration. Turning clockwise increases feedback and allows for self-oscillation.
Mix
Blends the dry signal with the effect. The pedal never goes fully wet but lowers the input signal as the effect level increases to simulate a wet-only reverb.
Specifications
- Type: Digital reverb
- Signal Path: Mono
- True Bypass: No, buffered bypass
- Power Supply: 9V DC
- Current Draw: 100 mA
- Dimensions: 57 × 63 × 120 mm
- Weight: 395 g
- Expression/CV Input: Yes
