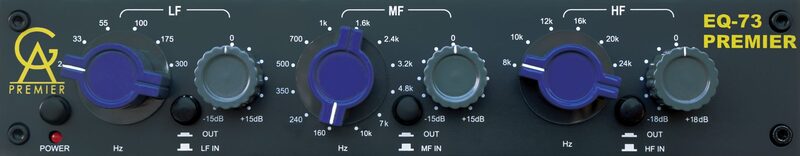

Golden Age Premier EQ-73

Features

• Vintage style electronics. No integrated circuits in the main signal path
• 3-band with a dual inductor based mid frequency band and stepped frequency selection
• A wide selection of frequencies from 20 Hz to 24 kHz and a control range of up to +/- 18 dB
• Separate bypass switches for each band
• Two UK made Carnhill inductors in the midrange section
• Tantalum capacitors in the main signal path, polystyrene capacitors in the gain stages
• Burr Brown OPA 2602 IC used for the balanced output stage
• Soldered internal connections
• Can be used together with one of our preamp´s with an insert jack or as a standalone unit
• TRS jack for the INSERT mode in- and output connection, the nominal working level is around -18 dBu
• IC-based in- and output stage for the LINE IN mode with balanced TRS and XLR connectors
• Selectable ground lift jumper
• External power supply to avoid interaction with the audio circuits
