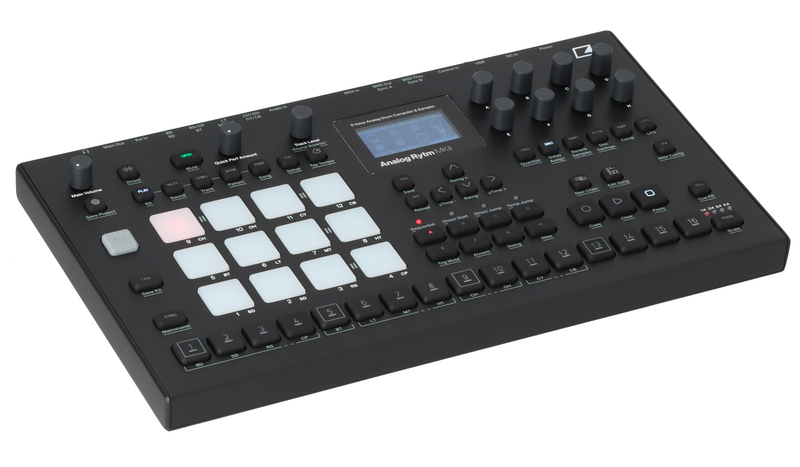

Analog Rytm MKII is an analog/digital beat making dream machine. Everything – from the state of the art aluminium enclosure, via the large pads, to the new quick performance controls – is a direct result of the quest for rhythmical excellence. And now you can sample with it too.
- 8 drum voices, each with:
- 1 × selectable analog percussion sound generator
- 1 × sample playback engine
- 1 × analog multi-mode filter
- 1 × analog overdrive circuit
- 1 × filter envelope
- 1 × amp envelope
- 1 × assignable LFO
- Analog Distortion and Compressor master FX
- Delay and Reverb send FX
- Sampling capability
- 1 GB internal sample storage on +Drive
- Quick Performance controls
- Live friendly Elektron sequencer
- 1 × ¼″ headphones output
- 2 × ¼″ impedance balanced main output
- 8 × ¼″ impedance balanced mono voice output
- 2 × ¼″ balanced sampling input
- 2 × ¼″ external input
- 2 × ¼″ expression/CV input
- 1 × USB 2.0 High Speed port
- MIDI IN/OUT/THRU ports with DIN Sync Out
- Ultra crisp 128 × 64 OLED screen
- Precise hi-res encoders
- Durable back-lit buttons
- W385 × D225 × H82 mm (15.2 × 8.85 × 3.3″) including knobs, power switch and rubber feet
- Weight approx. 2.5 kg (5.5 lbs)
- Fully compatible with Analog Rytm MKI projects/data
