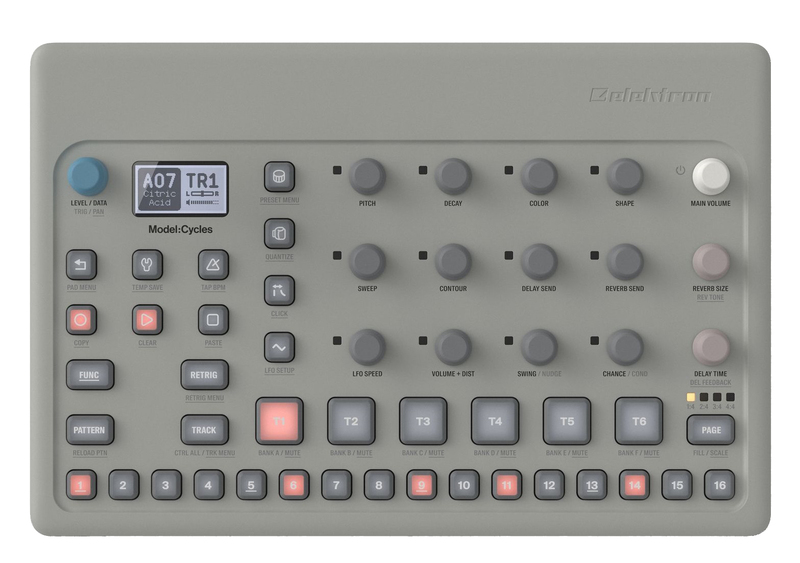

Elektron Model:Cycles

Specifications

Synth voice features

• 6 × FM-based Machines
• 1 × Assignable LFO per track
• 1 × Assignable velocity modulation per track
• Storage space for up to 60,000 presets

Sequencer

• 6 × Audio tracks (all of which may be used as MIDI tracks as well)
• Elektron sequencer with up to 64 steps
• Unique length and scale settings per track
• Parameter locks
• Micro timing
• Trig conditions
• Assignable retrig
• Real-time or grid recording of notes and parameters
• 96 × Projects
• 96 × Patterns per Project
• Send & master effects
• Delay and reverb send FX

Hardware

• 6 × Velocity sensitive pads
• Class compliant USB audio 2.0
• 1 ×  1/4” stereo headphone jack
• 2 ×  1/4” impedance balanced audio out jacks
• 1 × Hi-speed USB 2.0 Micro B port
• 3.5 mm dual polarity TRS MIDI In, Out/Thru jacks
• 128 × 64 pixel LCD screen
• 48 kHz, 24-bit D/A converters
• Hi-speed USB 2.0 Micro B port
• Power inlet: Center positive 3.5 × 1.35 mm barrel jack, 5 V DC, 1 A

Physical specifications

• W270 × D180 × H39 mm (10.7” × 7.1” × 1.6”) (including knobs and feet)
• Weight: approximately 0.80 kg (1.8 lbs)

Miscellaneous

• 3 year Elektron warranty
• Included in the box
• Power Supply PSU-4
• Micro USB Cable USB-2
• 2 × MIDI adapter (5-pin DIN to 3.5mm TRS minijack)
