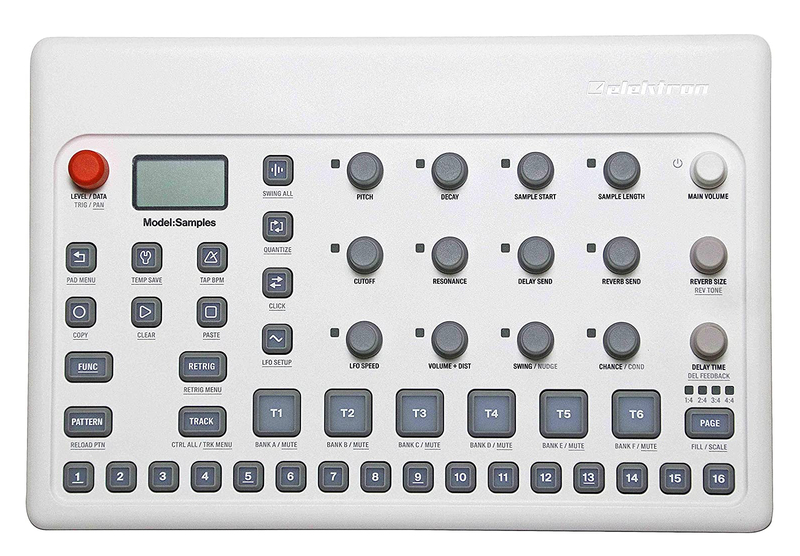

Elektron Model:Samples

Specifications:

• 6 Audio tracks (all of which may be used as MIDI tracks as well)
• 6 x Velocity sensitive pads
• 96 Projects
• 96 Patterns per Project
• 1 x Sample playback engine per track
• 1 x Resonant multimode filter per track
• 1 x Assignable LFO per track
• Delay and reverb send FX
• Elektron sequencer up to 64 steps with unique length and scale settings per track
• Real-time or grid recording of notes and parameters
• 64 MB sample memory
• 1 GB storage
• Class compliant USB audio 2.0
• 1 x 1/4" Headphones output
• 2 x 1/4" Balanced main outputs
• 1 x High speed (micro) USB 2.0 port
• 1 x 3.5 mm standard audio minijack (TRS) for MIDI In
• 1 x 3.5 mm standard audio minijack (TRS) for MIDI Out/Thru
• 2 x slots for attaching Powerhandle BP-1 (to be released at a later date)

Dimensions: W270 x D180 x H40 mm (10.63 x 7.09 x 1.58") (including knobs and rubber feet)

Weight: approximately 0.814 kg

In the box:

• Power Supply PSU-4
• Micro USB Cable USB-2
• MIDI adapter (5-pin DIN to 3.5mm TRS minijack)

Accessories:

• Sleeve ECC-5
• Protective Lid PL-4
• MIDI adapter CA-3
