Kenton D-Sync

Artikkelnummer 1097383

Bi-directional MIDI to DIN Sync converter

På weblager. Lev.tid ca 8-12 dager

Betal direkte, faktura eller delbetaling - Lagre kort og bankkonto - Enkelt og trygt

Kr 1213/stk

Features

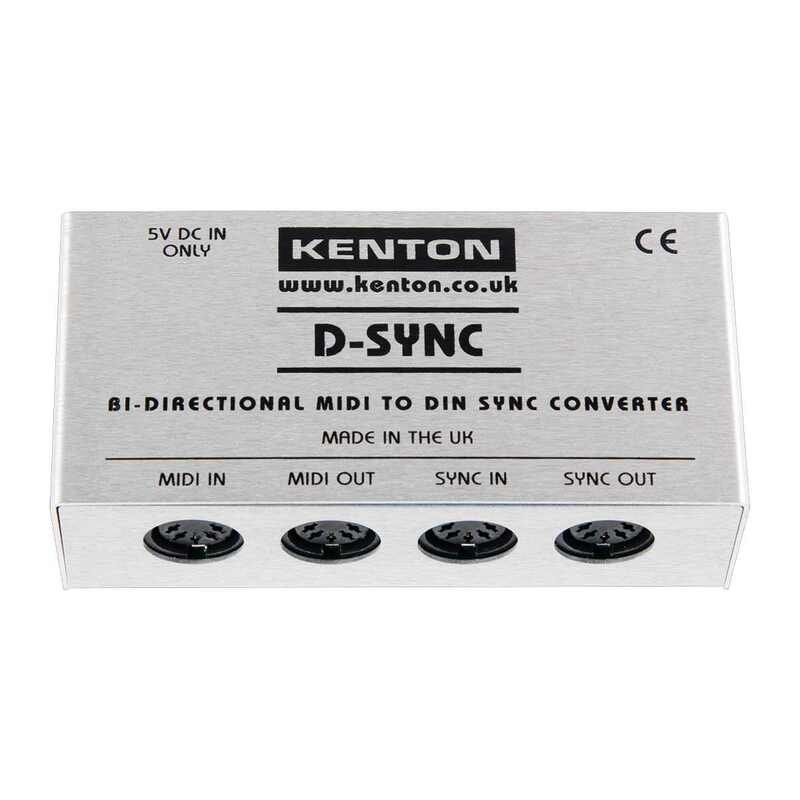

High quality Kenton MIDI MIDI to DIN Sync converter box with MIDI In, MIDI Out, Sync In & Sync Out sockets
Housed in a metal box so it can withstand the knocks
Opto-isolated MIDI In
Receives MIDI clock and stop/start data and converts it to DIN Sync
Receives DIN Sync data and converts it to MIDI Clock
Operates in Sync-24 or Sync-48 mode
Status LED indicates sync-24 mode (green) or sync-48 mode (red)
Soft Thru mode allows you to merge MIDI data with DIN Syn data
USB mini B for DC power input
Powered from a multi-region mains adaptor (wall wart) so you can fit and forget.
The D-Sync can be configured with the D-Sync Configuration Manager – see kenton.co.uk/support/apps.

Power Supply:	Power via USB mini-B socket (Power Supply included)
Current Draw:	90mA, leaving 910 mA for USB bus power
Connectors:	USB Mini-B: Power 2 x 5 pin DIN: MIDI IN, MIDI OUT 2 x 5 pin DIN: SYNC IN , SYNC OUT
LEDs:	2 colour LED to indicate sync mode (green for sync-24, red for sync-48)
Dimensions:	110 x 55 x 32 mm
Weight:	150g (excluding power supply)
Accessories included:	User Manual 5V 1A Multi-Region Power Supply (suitable for use in the UK, EU, US/Canada, Japan and AUS/NZ.) 1.8m USB Type A to Mini-B cable for Power Supply
