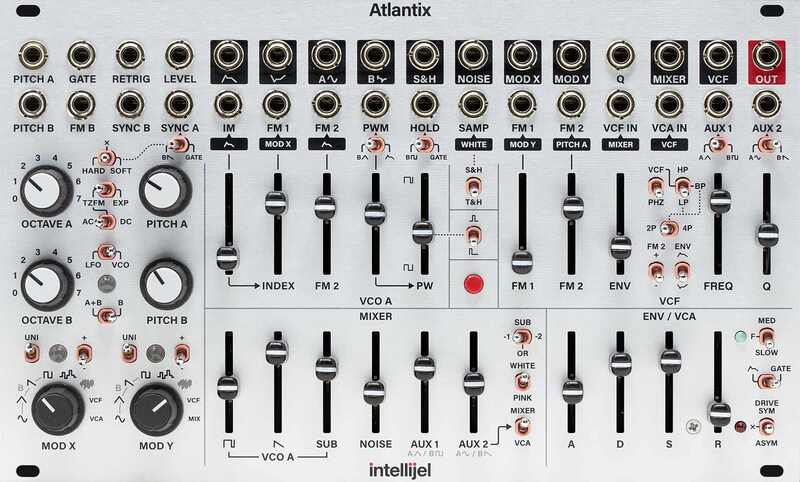

intellijel Atlantix

The Atlantix is a complete analog synth voice. It's quick to dial in huge bass or lead sounds, and easy to push it into new sonic territory. Dual VCOs, Multimode VCF, VCA with Drive, and an ADSR envelope; all of the building blocks needed to expand or start making sound in your rack. With 32 patch points and a selection of routing switches, you can remix these blocks into something all your own.

Features

• Cascaded 4-Pole multimode filter with LP2, BP2, LP4, BP4, HP4, and Phaser modes
• Two Triangle Core VCOs
• VCO A: Thru-Zero FM with INDEX and PWM, Hard/Soft Sync, Octave switch
• VCO B: Linear FM, LFO/VCO switch, Hard Sync, Octave switch
• Suboscillator with three modes spanning two octaves
• White and Pink noise sources
• Six-channel mixer comprising VCO A Waveforms, Sub, Noise, and two Aux inputs
• Aux inputs have switched normals with sources from VCO A and B for quick paraphonic play without patching
• Mixer Aux 2 can be routed post-VCF / pre-VCA
• Mod X and Y buses allow for quick modulation routing of VCO B, S&H, Noise, and feedback sources without patching
• Both Mod X and Y buses have polarity and level-shifting switches
• Analog ADSR envelope with three time ranges, manual gate, and level (velocity) input
• Patchable Sample and Hold modulation source
• Asymmetric and symmetric output distortion modes
• 20 Sliders, 4 Knobs, 27 toggles, and 2 Rotary switches for expressive hands-on control
• 32 Jacks for creative and complex patching options
• 16 additional jacks with the optional Atlx expander
