AKG C214/ST

Engineered excellence

for recording of lead vocals and solo instruments in studio and on stage

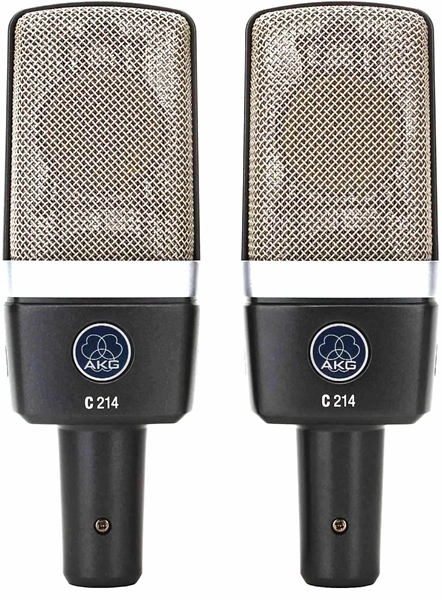

The C214 professional large-diaphragm condenser microphone has been designed as a cost-effective alternative to the high-end C414 family. Like the C414, the C214 offers a supreme one-inch capsule on an integrated suspension to reduce mechanical noise. A switchable 20dB attenuation pad allows recording of loud sources of up to 156dB SPL. A switchable bass-cut filter allows close-up recording with almost no proximity effect.

The C214 captures sound by combining one capsule of the legendary C414 dual-capsule system and the patented AKG Back-Plate Technology, resulting in an outstanding performance close to the famous C414 XLII.

Technical Specification

General	Audio Frequency bandwidth Sensitivity Equivalent Noise Level Signal to Noise Preattenuation Pad Bass Cut Filter Electrical Impedance Recommended Load Impedance	20 to 20000 Hz 20 mV/Pa 13 dB-A 81 dB-A -20 dB 160 Hz 200 Ohms 1000 Ohms
Polar Patterns	Cardioid
Powering Interface	Voltage Current	9 to 52 V 2 mA
Audio Output	Type Gender Contacts	Balanced XLR Male 3-pin
Design	Finish	matte grayish blue
Dimensions / Weight	Width Height Net Weight	56 mm 160 mm 280 g
