Artikkelnummer 1077477

Neumann U89 i mt

Large diaphragm microphone with 5 switchable patterns. Colour Matte Black

Kr 38290,00/stk
Legg i handlekurven

Bestillingsvare

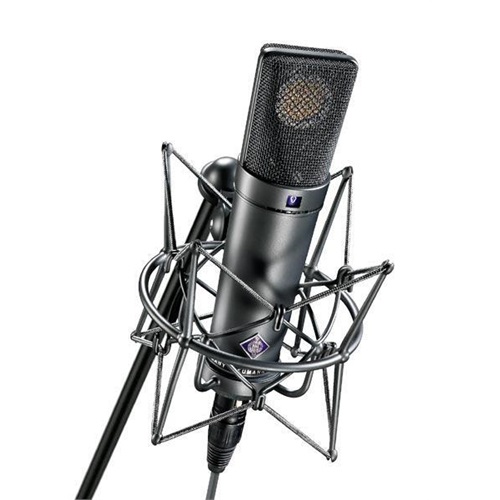

The U 89 is a studio microphone for universal applications. The headgrille protects a dual-diaphragm capsule. A rotary switch below the headgrille selects from five different polar patterns. Therefore the microphone can be adapted easily to large-surfaced or wide sound sources, or to sound sources to be recorded at a greater distance.

The maximum sound pressure level of 134 dB can be increased to 140 dB with a rotary switch. Another rotary switch is provided for lowering the transmission distance below the selectable frequencies 80 Hz or 160 Hz.

In addition to the usual directional polar patterns: omnidirectional, cardioid, and figure-8, we have added a hypercardioid and wide-angle cardioid characteristic. When compared to the standard cardioid pattern, the hypercardioid characteristic suppresses sound from the side more efficiently. The wide-angle polar pattern is especially useful when recording large sound sources.



  • Polar pattern: Switchable between omnidirectional, cardioid, figure-8
  • Switchable 10 db attenuation
  • Universally applicable: Vocals, speakers, overheads, wind instruments
  • Transmission range 20 Hz ... 20 kHz
  • Field transfer factor at 1 kHz at 1 kOhm 8 mV / Pa
  • Nominal impedance: 150 Ohm
  • Nominal load impedance: 1000 Ohm
  • Replacement noise level (CCIR 468-3): 28 dB
  • Spare noise level (DIN / IEC 651): 17 dB-A
  • Noise level difference (CCIR 468-3): 66 dB
  • Noise level difference (DIN / IEC 651): 77 dB
  • Boundary sound pressure level for K <0.5%: 134 dB
  • Boundary sound pressure level for K <0.5% with pre-attenuation: 140 dB
  • Maximum output voltage: 800 mV
  • Dynamic range of the amplifier (DIN / IEC 651): 117 dB
  • Supply voltage: 48 V ± 4 V
  • Current consumption: 0.8 mA
  • Weight: 400 g
  • Diameter: 46 mm / Length: 185 mm
  • Colour: Matte black
