Allen & Heath QU-24

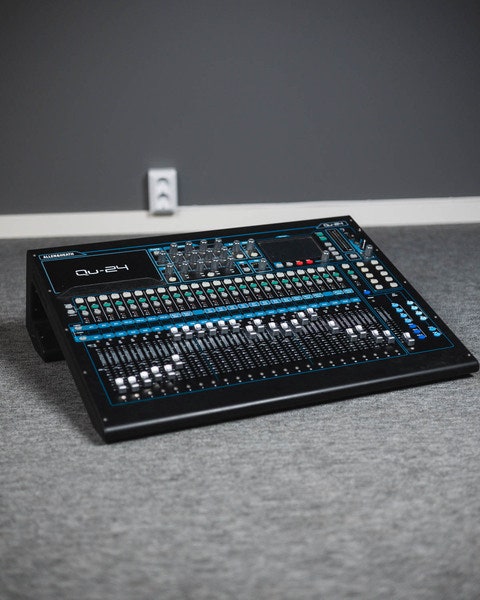

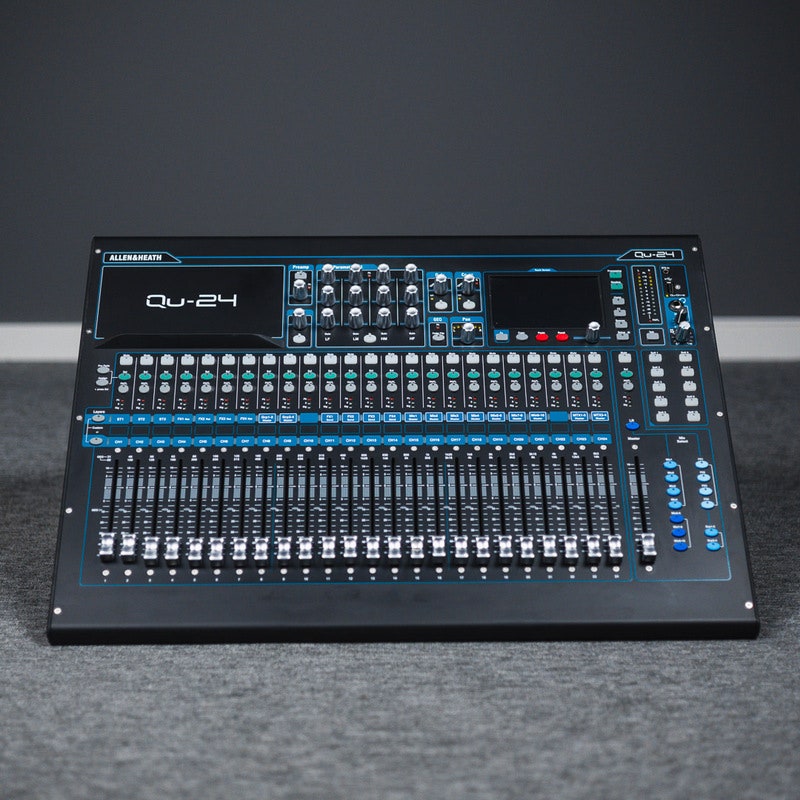

NOTE: Used digital mixer from Allen & Health. See pictures for condition. 6 months warranty.

Digital mixer with touchscreen, 24 inputs, and built-in recording

The Allen & Heath Qu-24 is a digital mixer that combines an intuitive layout with extensive functionality for live sound, streaming, and studio use. It offers 24 individual input channels, dedicated physical controls, and a touchscreen for quick access to key settings.

User-Friendly Control

Direct access to each channel
Qu-24 features one fader per mono input, providing a clear overview and fast adjustments without switching between fader layers. This makes it especially suitable for users transitioning from analog consoles.

Touchscreen with SuperStrip
The full-color touchscreen is complemented by the SuperStrip – a section of physical controls for quick access to gain, high-pass filter, EQ, compressor, and pan.

Signal Quality from Input to Output

AnalogiQ preamps
The 24 digitally controlled preamps are designed for low noise and transparent sound. Signal conversion is handled by low-latency 24-bit AD/DA converters for high-quality audio throughout.

Effects and Audio Processing

RackFX processors
Qu-24 includes four stereo effects engines with modeled classic reverbs, delays, modulations, and more. Effects return on dedicated stereo channels with 4-band EQ, freeing up input channels.

Recording and Streaming

Built-in USB audio interface
Up to 32 tracks can be recorded to a computer via USB. Playback from the computer can be routed to any mixer input. MIDI control is supported over USB and network, compatible with DAWs via standard protocols.

Qu-Drive – recording without a computer
Qu-Drive allows 18-channel multitrack recording directly to a USB drive. You can record a selectable stereo pair alongside 16 mono channels and play back multitrack audio to the mixer.

Automatic Mic Mixing

AMM – Automatic Mic Mixer
AMM helps manage multiple open microphones in scenarios like conferences and discussions, reducing background noise and minimizing feedback. Up to 16 mic channels can be automatically mixed with user-defined priorities.

Construction and Connectivity

Durable and quiet
Built from cold-rolled steel, the chassis is designed for strength. Passive cooling eliminates the need for fans, ensuring silent operation in studios and quiet environments.

Expandable via dSNAKE
The built-in dSNAKE port enables connection to remote stageboxes such as AB168, AR2412, or AR84, allowing flexible I/O expansion.

Specifications

• 24 mono inputs with individual faders
• Full-color touchscreen with rotary encoder
• 4 stereo RackFX engines
• 24-bit AD/DA conversion
• USB audio interface for 32x30 channels
• Built-in Qu-Drive multitrack recording (18 channels)
• AMM with 16 mic inputs
• SuperStrip with dedicated EQ, compressor, and more
• Fanless, silent operation
• dSNAKE port for remote I/O
• MIDI control via USB and network
