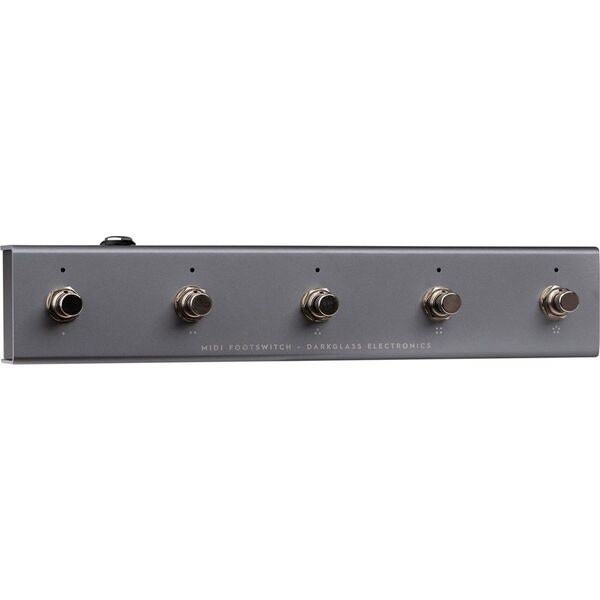

Darkglass MIDI Footswitch

MIDI Footswitch – Programmable Control for Amplifiers and Effects

Compact Control for MIDI-Compatible Devices

This MIDI footswitch is designed to control pedals, amplifiers, and other MIDI-enabled gear. It features five programmable footswitches with individual RGB indicators and supports up to five banks with five presets per bank. Configuration is done via the Darkglass Suite software, allowing full customization of colors and MIDI commands.

Versatile Connectivity

The footswitch offers a range of connection options, making it compatible with a wide variety of devices. It includes MIDI IN (5-pin), MIDI OUT/THRU (7-pin), and USB-C for both power and communication with Darkglass Suite. It also features a 9V DC input and a ¼" TS connector for direct connection to Darkglass amplifiers. Several of these inputs can simultaneously supply power and transmit data, minimizing the need for external power supplies.

Preset Banks and Preloaded Configurations

In addition to full configurability via the Darkglass Suite, ready-to-use configurations for Darkglass products are available. The unit also supports “bank mode,” giving access to multiple grouped presets for quick changes during performances.

Specifications

• Type: MIDI footswitch
• Presets: 5 slots (up to 5 banks with 5 presets per bank)
• Connections:
• MIDI IN (5-pin DIN)
• MIDI OUT/THRU (7-pin DIN)
• USB-C
• 9V DC (center negative)
• ¼” TS for Darkglass amplifiers
• Power sources: 9V DC, USB, MIDI OUT/THRU, or Darkglass amplifier
• Dimensions: 276 x 54 x 55 mm
• Weight: 150 g
