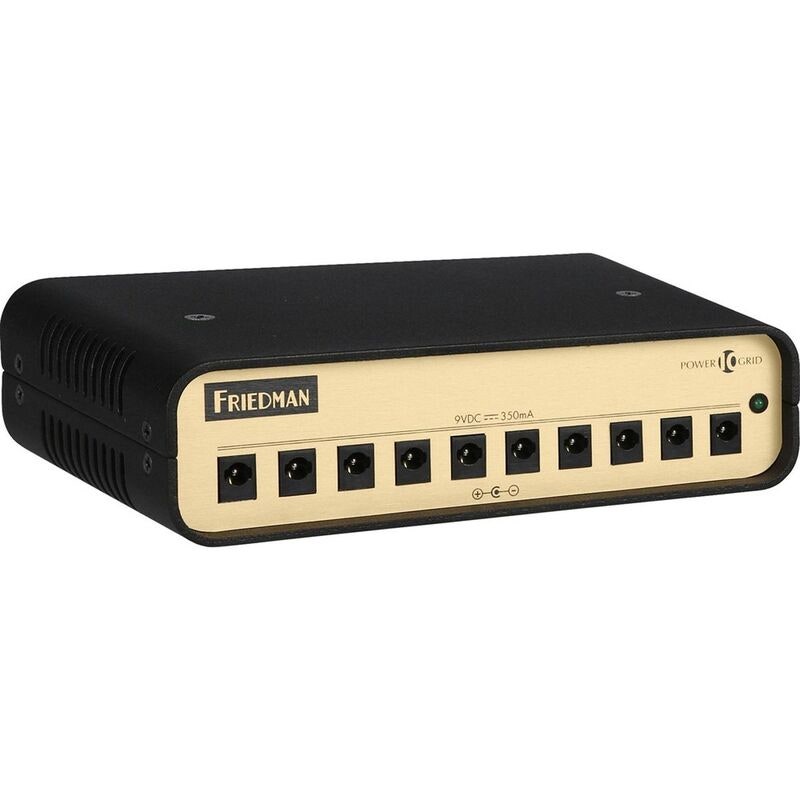

Friedman Power Grid 10

Isolated Power Supply for Pedalboards

The Friedman Power Grid 10 is an isolated power supply designed to meet the needs of musicians requiring silent and reliable performance, whether in the studio or on stage. With universal AC input and a compact form factor, it also functions as a pedal riser, making it adaptable to various pedalboard setups.

Stable Power in Any Environment

Worldwide Compatibility

With an input range of 100–240V AC, the Power Grid 10 can be used anywhere in the world without the need for switches or voltage converters. Ideal for touring and travel.

No Magnetic Field Noise

Unlike many traditional power supplies with toroidal transformers, this unit eliminates field hum, reducing the risk of unwanted signal interference.

Designed for All Pedal Types

Each of the ten outputs is isolated and delivers up to 350 mA at 9V DC—sufficient for powering most effect pedals on the market, including high-current models. The unit comes with a range of cables in different configurations and lengths for easy setup.

Usable as a Pedal Riser

For boards where under-mounting isn’t possible, the Power Grid 10 is designed to act as a riser. Pedals can be mounted directly on top of the housing—including sensitive fuzz pedals that might otherwise introduce noise if placed too close to standard power supplies.

Specifications

• Power: 10 isolated 9V DC outputs (350 mA per output)
• Universal AC input: 100–240V
• No magnetic field hum (ZERO field hum)
• Included cables:
• 10 x 2.1mm to 2.1mm (standard polarity)
• 2 x 2.1mm to 2.5mm (reverse polarity)
• 1 x 2.1mm to 1/8” mini-jack
• 1 x 18V cable with additional slave connector
• Dimensions: 4.5" x 6.75" x 1.75" (114 x 171 x 44 mm)
• Weight: 1.5 lbs (0.68 kg)
