ENGL Ironball Combo Celestion V30

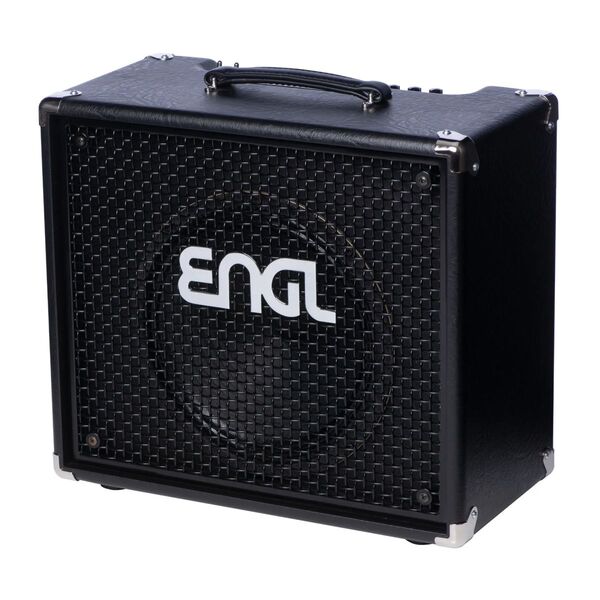

Tube Combo – ENGL Ironball E600 Combo

ENGL Ironball E600 Combo is a compact tube amplifier with four channels and 20 watts of output power, designed for both stage and studio use. Despite its small format, it delivers a wide range of tones—from clean to full high-gain distortion. With the built-in Power Soak, the output can be reduced to 5 watts, 1 watt, or completely muted, making it ideal for headphone practice or silent recording. A frequency-compensated, balanced line output allows for direct recording.

Four Channels with Versatile Tone Shaping

The Ironball E600 includes Clean, Crunch, Soft Lead, and Heavy Lead channels, covering a broad sonic range. A shared 3-band EQ adjusts the tone, while Presence and Reverb controls provide additional fine-tuning.

Built-In Functions for Stage and Studio

The Master Volume Boost enables switching between two volume levels via footswitch. The tube-buffered FX loop supports integration of external effects without compromising tone. The amp also includes a headphone output and a Celestion Vintage 30 speaker.

Specifications

• Type: Tube combo
• Power Output: 20 W (Power Soak: 20 W / 5 W / 1 W / speaker off)
• Channels: Clean, Crunch, Soft Lead, Heavy Lead
• Footswitch: Z4 (channels, M.V.B., reverb)
• Dimensions: 49 × 44 × 25 cm
• Weight: 19 kg
• EQ: 3-band EQ (shared)
• Speaker: 1 × 12″ Celestion Vintage 30
• Built-In Effects: Reverb, Presence

Tube Configuration:

• Preamp: 4 × ECC83 / 12AX7
• Power Amp: 2 × EL84

Functions:

• Gain Boost
• Master Volume Boost (M.V.B.)
• Tube-buffered serial FX loop
• Balanced frequency-compensated Line Out
• Headphone output

Outputs:

• Speaker: 1 × 8 Ω, 1 × 16 Ω, 2 × 8 Ω (parallel)
• Balanced Line Out
• Headphones
