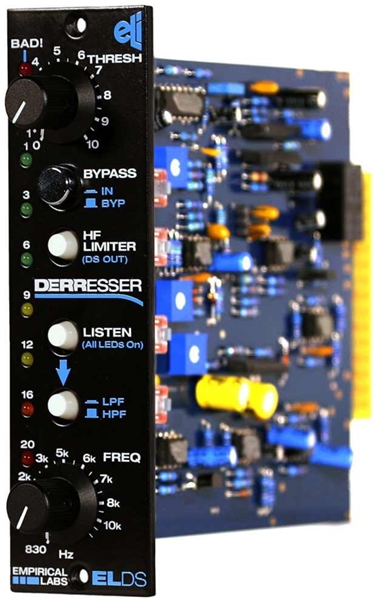

EmpiricalLabs DerrEsser
500 Series Dynamic High Frequency Fixer
Specifications
- Frequency Response – 3 Hz to 120 kHz (-3dB points).
- Dynamic Range – 115 dB from maximum output (.5%THD soft clipping) to minimum output. Transformerless noise floor typically – 93dBu.
- Distortion – Ranges between .0035% and .01% depending on mode and settings.
- I/O – DC Coupled input and outputs. Input Balanced, Output single ended but with balanced impedance. Pin 2 hot.
- Impedance – Input Impedance is 20k Ohm. Output impedance is less than 51 ohms.
- D-S Dynamics Time Constants – Attack time is less than 1mS. Release .04 sec, fixed internally.
- Power Consumption – 8 Watts max. 4 Watts Typical.
