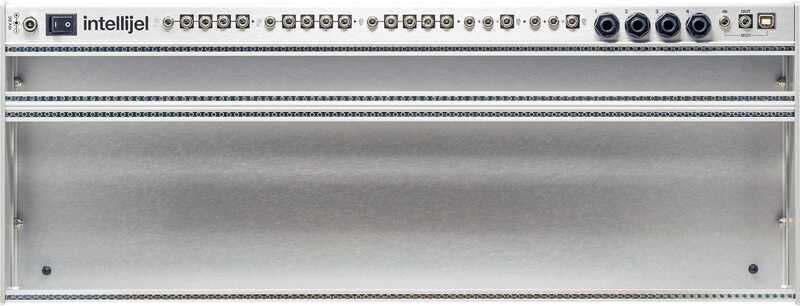

intellijel Palette 104 4U

Palette 104HP Features

• One 104 hp row of Eurorack (3U) module space.
• One 104 hp row of Intellijel (1U) module space.
• Built in triple buffered multiple with bi-polar led level indicators.
• Built in dual precision summers with bi-polar led level indicators.
• Expansion jacks for MIDI and balanced audio i/o.
• Threaded M3 strips for mounting modules.
• High spec 60 Watt power supply capable of powering up to 24 modules with +12 V output at 1500 mA, -12 V output at 1500 mA and +5 V output at 500 mA.

Utilities Row

• Triple 1:4 buffered multiple.
• Dual 2:1 precision summer.
• Four 1/4″  balanced audio jacks that can be connected to the Stereo Line Out 1U, Stereo Line In 1U, Pedal I/O 1U or Mixup.
• ⅛” (3.5mm) MIDI Input that can be connected to MIDI 1U.
• ⅛” (3.5mm) MIDI Output that can be connected to MIDI 1U.
• USB port that connects to the MIDI 1U and other future modules.
• Rocker switch and barrel plug for power entry.

Construction

• Anodized aluminum.
• Aluminum extruded rails with steel threaded inserts
• Rubber feet to protect your desktop.
• Rear mounted power supply for maximum module depth
