Artikkelnummer 1081257

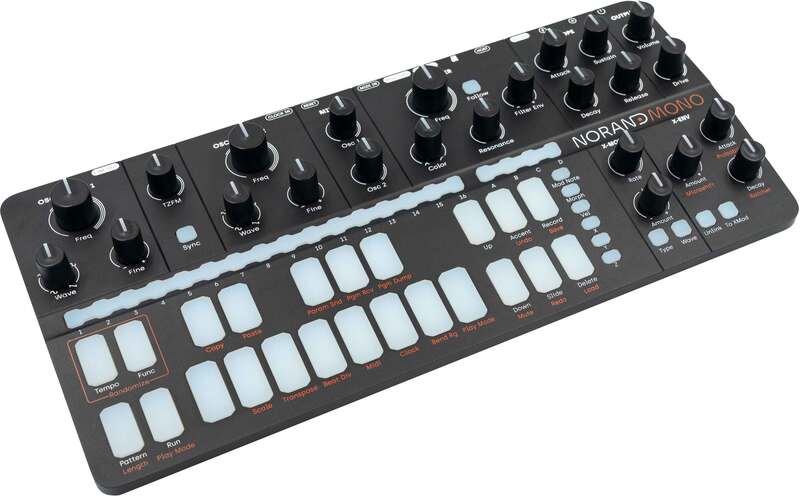

Norand Mono MK2

Extraordinary monophonic analog synthesizer with sophisticated sequencer and highly innovative modulation features

Kr 10222,00/stk
Legg i handlekurven

Bestillingsvare



Synth Voice Features

  • Fully analog signal path
  • 2x analog oscillators
  • Continuously variable waveform
  • Thru-zero frequency modulation
  • Hard Sync
  • Filter Overdrive
  • 1x 3-pole multimode filter
  • Continuously variable filter color
  • 1x main ADSR envelope
  • Soft Overdrive



Modulation Features

  • Controls: 13x dedicated AD envelopes 20x dedicated modulator
  • Modulator: 5 waveforms, type settings: Free/Synced/Audio Rate, Audio-Rate anti-aliased, quantized to OSC1, Free from 0.1 to 80 seconds
  • Envelope: Attack-Decay segment from 10 us to 20 s



Sequencer

  • Up to 64 steps per pattern
  • 1024 PPQN automations
  • Individual length/scale/beat division per pattern
  • Individual microshift/ratchet/probability per step
  • Swing/Slide/Accent
  • Copy/Paste everything
  • Undo/Redo anything
  • Mod Note Mode
  • Fast, clock-independent project load/save



Randomizer

  • Quantized note randomizer
  • Ranged parameter automation randomizer
  • Step randomizer
  • Mod note randomizer
  • Microshift/Probability/Ratchet randomizer



Memory Storage

  • Unlimited projects on SD card
  • 64 patterns with patch memory per project
  • Unlimited parameter automation per Pattern
  • 40 mod notes per project



Hardware

  • 23x backlit RGB Potentiometers
  • 24x illuminated silent mechanical switches
  • 23x 808-style switches
  • MIDI In/Out/Thru
  • 1x 1/4" balanced main audio output
  • 2x 1/8" eurorack clock/reset input
  • Flash EEPROM upgradeable OS
  • MIDI device USB-C port
  • MIDI host USB-C port



Outputs

  • Stereo audio outputs: Output level: +15 dBu maximum, output impedance: 200 ohms, headphones up to 80 ohms



Electrical Specification

  • Unit consumption: 7 W typical
  • Low power mode for USB power
  • High quality power supply included
  • Recommended power supply: 5 V DC, 2 A



Physical Specifications

  • Machined aluminum front panel
  • Machined aluminum back panel
  • Dimensions: 350 x 150 x 35 mm

Weight: Approx. 1,6 kg



Included:

  • Mono MK2
  • Power supply
  • 3 x MIDI adapter male 3.5mm TRS (type A) to female 5-pin DIN
  • Quick start guide
