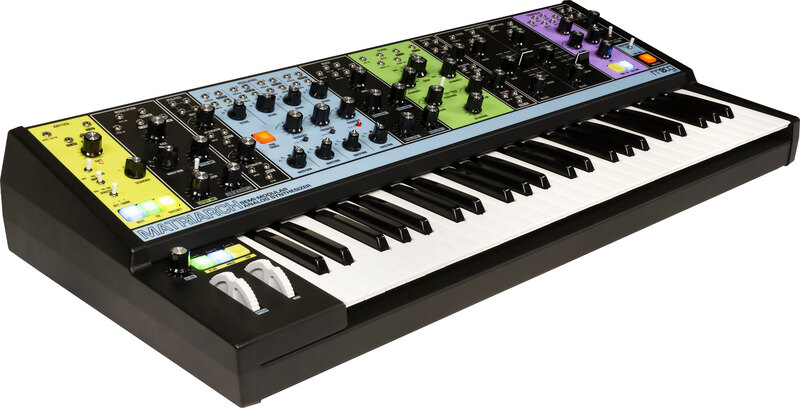

Matriarch is a patchable 4-note paraphonic analog synthesizer with a built-in Sequencer, Arpeggiator, stereo Ladder Filters, and stereo Analog Delay
The pinnacle of Moog’s semi-modular family of synthesizers, Matriarch’s patchable architecture and classic Moog circuits reward open exploration with endless sonic possibilities and unparalleled analog sound. Matriarch’s 4 analog VCOs can be split into 4 notes of paraphony that can be sequenced, shifted, and stored with the instrument’s intuitive 256 step sequencer, or stacked in unison to create a massive 4 oscillator mono synth.
With a deep assortment of synthesis modules based on Bob Moog’s original circuit designs, Matriarch’s 100% analog signal path spans a dynamic sonic vocabulary – from overdriven monophonic bass to gently evolving paraphonic plucks that cycle through waveshapes into a wash of infinite delay trails. Coupling the power of vintage-designed stereo ladder filters, dual Envelope Generators, stereo Analog Delays, and stereo VCAs, Matriarch delivers a multi-dimensional sound that empowers the sonic exploration of both space and time.
Though Matriarch’s semi-modular design requires absolutely no patching, 90 modular patch points are easily accessible throughout the panel via the included 3.5mm patch cables. This powerful electronic instrument is a highly-versatile addition to any stage or studio that can effortlessly transform from a performance keyboard into a fully modular analog synthesizer at a moment’s notice.
In addition to its standalone function, Matriarch is also an ideal processor of external sound sources and a powerful keyboard front-end for expanding a DFAM, Mother-32, Grandmother, or Eurorack modular system.
- Mono, duo, and 4-note paraphonic playability
- Stereo analog delay w/ up to 700ms of MIDI sync-able stereo or ping/pong style repeats
- 256 step sequencer w/ up to 4 notes per step and 12 stored patterns. Can be decoupled from Matriarch to independently sequence external gear
- Arpeggiator with selectable modes (Order, Forward/Backward, Random)
- Semi-modular analog synthesizer – no patching required
- 90 modular patch points for endless exploration
- Expressive 49-note Fatar keyboard w/ patchable velocity and aftertouch
- 4 analog oscillators w/ selectable waveshape and hard sync per-oscillator
- Full-range analog LFO with 6 selectable waveshapes
- Dual analog filters with parallel (HP/LP), stereo (LP/LP), and series (HP/LP) modes available
- Dual analog ADSR envelopes
- Dual analog VCAs
- 3x bipolar voltage controlled attenuators with ring mod capability
- 2×4 parallel wired unbuffered mults
- Additional simple analog LFO useful for adding modulation to delay, filters and VCAs.
- 1/4“ external audio input for processing guitars, drum machines, and more through Matriarch’s analog circuits
- Stereo ¼” and 3.5mm Eurorack level audio outputs
- Dimensions: 32” (81.28cm) Wide x 14 1/4” (36.19cm) Deep x 5 1/2” (13.97cm) High
- Weight: 24lbs. / 10.89kg
