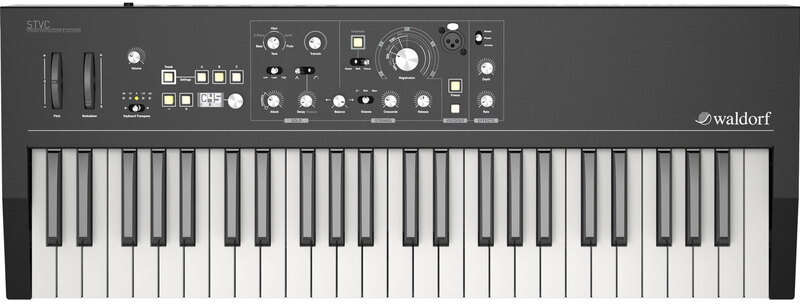

Waldorf STVC

Hardware:

• Full metal case
• Keyboard with 49 keys, aftertouch and velocity
• Keyboard transpose +/- 24 semitones via dedicated switch
• Pitch bend and Modulation Wheel
• 128x64 pixel OLED
• 10 potentiometers, 1 encoder, 9 backlit buttons, 5 switches
• 44 cm gooseneck microphone with indicator LED

Connections:

• MIDI in/out
• USB/Power
• 6.3 mm Sustain Pedal input
• 6.3 mm Expression/Ext. signal
• 3.5 mm Headphone out
• 6.3 mm Line out Left/Stereo
• 6.3 mm Line out Right/Mono
• XLR Microphone jack on front panel

Sound engine:

• Fully polyphonic String section
• Continuous morphing of String Registration
• 16 Voice polyphonic Solo section
• Continuous morphing of Solo sounds
• Tremolo for Solo
• 126 programmable patches in three banks
• Tweak for modulation and specific adjustments

Vocoder:

• 256 Filter bands
• Excellent intelligibility
• Formant modification
• Freeze mode
• Fully polyphonic carrier
• Optional jitter for string carrier
• Continuous morphing of Registration

Effects:

• Animate Effect for modulation of Registration
• Ensemble/Chorus Effect for Strings and Vocoder
• Phaser Effect for Strings and Vocoder
• Reverb Effect
• All Effects available simultaneously

Dimensions:

• Width: 740mm
• Depth: 280mm
• Height (including knobs): 100mm
• Total weight: 7.5kg
