Algam Lighting MS100

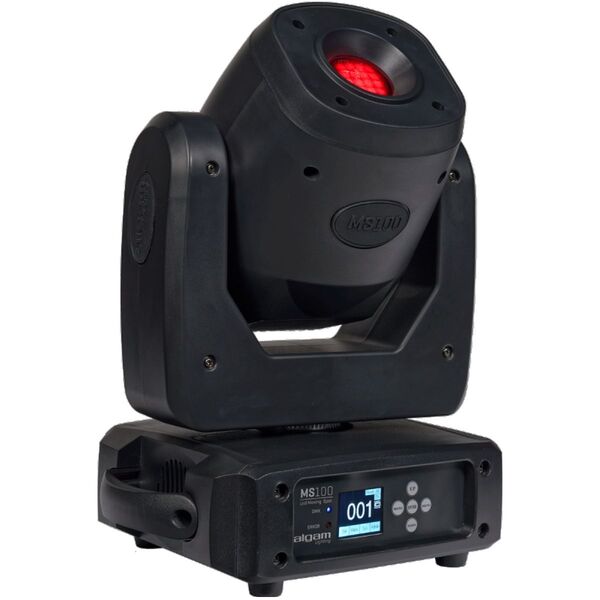

MS100 – 100W LED Spot Moving Head

Versatile spot fixture for dynamic lighting

The MS100 is a high-output LED spot moving head designed for professional use at stages, clubs, and medium to large events. It features a 100W white LED source paired with creative tools for producing a wide range of lighting effects.

Gobo wheels and color selection

Equipped with 7 fixed gobos and 6 rotating gobos, along with a color wheel offering 7 colors plus white, the MS100 allows for rich image projections. Motorized focus ensures sharp visuals at different throw distances.

Multi-faceted prism and wide motion

The integrated 6-face rotating prism with variable speed splits the beam into multiple projections. Combined with 540° PAN and 230° TILT, the fixture delivers sweeping and animated movement on stage.

Connectivity and control

MS100 includes PowerCon in/out and OMEGA brackets for secure rigging. It supports automatic mode, sound activation, DMX, and master/slave operation, making it adaptable for diverse setups.

Specifications

• Light source: 100W white LED
• Gobo wheels: 7 fixed + 6 rotating gobos
• Color wheel: 7 colors + white
• Focus: Motorized
• Prism: 6-facet rotating with variable speed
• Movement: PAN 540° / TILT 230° (motorized)
• Operation modes: Auto, sound, DMX, master/slave
• Connections: PowerCon in/out, OMEGA mounting brackets
• Protection rating: IP20 (indoor use only)
• Dimensions: 280 x 215 x 370 mm
• Weight: 5.9 kg
