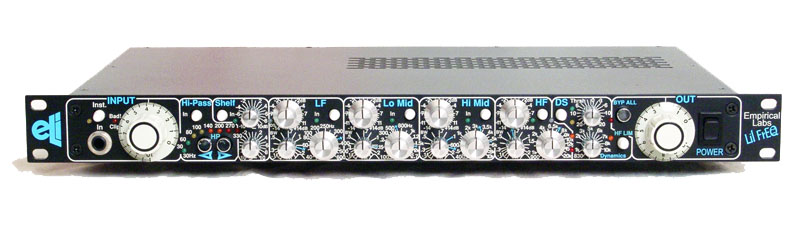

EmpiricalLabs Lil FrEQ

Specifications

• Frequency Response – 5 Hz to 140 kHz on transformerless inputs and outputs. Transformer output 10Hz to 110 kHz.
• Dynamic Range – 120 dB from maximum output (.1% clipping) to minimum output. Greater than 110 dB signal to noise.
• Distortion – Ranges between .00056% and .005% depending on mode and settings. DS section has THD < .005%.
• I/O – DC coupled inputs and outputs and one transformer coupled output.
• Dynamic Time Constraints – Attack is approximately .5 ms. Release .04 sec fixed internally.
• Power Consumption – 15 Watts Max.
• Metal Chassis – single height 1.75″ high, 10″ deep, 19″ wide.
• Shipping info – Box dimensions 22.5″ x 18.5″ x 3 1/4″.
