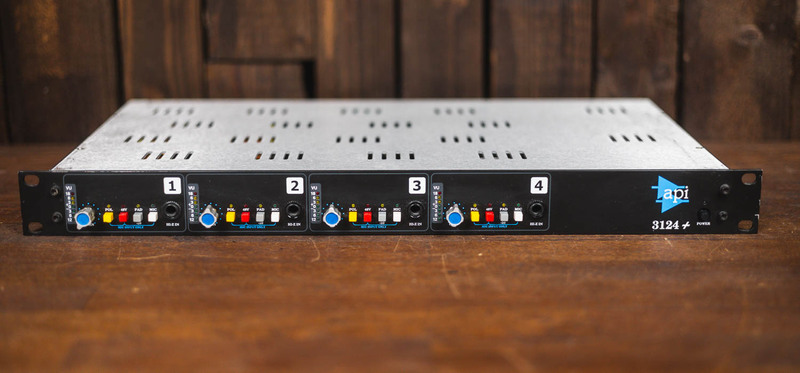

API 3124+

Artikkelnummer 1022764

Used preamp from API, 1500 ohms inputs, less than 75 ohms outputs, 4 XLR mic inputs, 6 month warranty

På weblager. Lev.tid ca 5-10 dager

Betal direkte, faktura eller delbetaling - Lagre kort og bankkonto - Enkelt og trygt - Klarna kjøperbeskyttelse

Kr 24995/stk

NOTE:Used preamp from API. See pictures for condition. 6 month warranty.

Functions

Uses API 2520 Op-Amplifier
Classic Console Circuitry
Four XLR Mic Inputs
Four 1/4'' Un-Balanced Inputs
Front Panel Polarity Switch
Front Panel 20 dB PadSwitch
Front Panel Mic/Line Switch
Front Panel 48V Power Switch
Output Clips at +30 dBm

Specs

Input Impedance: 1500 Ohms Mic, 470 K Ohms Un-Balanced, HI-Z in
Output Impedance: Less than 75 Ohms Channel Outputs
Nominal Levels: XLR Channel Output +4 dBu
Stereo Output Level: Unbalanced: nominal -2, Balanced: +4
Clipping Level: XLR Channel Output better than +28 dBm
Frequency Response: +0, -5, 10 Hz to 20 kHz (-.5 at 10 Hz)
Noise EIN: -129 Mic, -125 Un-Bal. Actual
Measured Noise: Better than -91 dBm / below Nominal +4.
Distortion: All Outputs at +4 out, .03 , at +22, .09 Max
Gain Range: 150 Ohms Input 10 dB Min., 65 dB Max (inc. PAD). Un-Bal. Input 14 dB Min., 50 dB Max
VU Meter: Calibrated for XLR Outputs, OVU=+4 dBu, (-12, -6, -3, 0, +3, +6, +18)
Controls: GAIN, PAD (20 dB), 48Volts, POL (polarity), MIC (mic/un-bal), VU, AC
Power Consumption, Quiescent: 19.2 Watts
