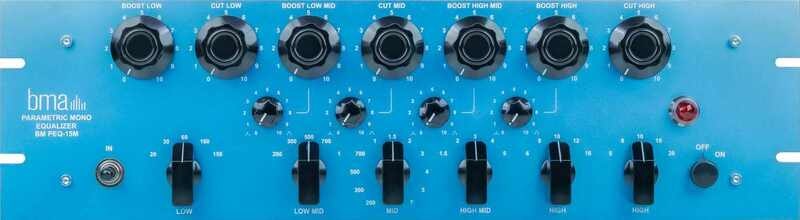

BMA BM PEQ-15M

The BMA BM PEQ-15M is a high-quality, tube based parametric equalizer designed for precise and musical sound shaping in professional recording environments. Built with a focus on clarity and control, the PEQ-15M allows you to both boost and cut frequencies with accuracy, without compromising the natural character of the source.

Two-in-one design; the BM PEQ-15M goes a step further by incorporating additional mid bands for increased flexibility, making this classic-style equalizer even more versatile. perfect for mixing, mastering, and tracking applications.



Technical Specifications:

• Input Impedance: 600Ω
• Output Impedance: 600Ω
• Frequency Response: 30Hz–20kHz ±0.5dB
• Gain: 35 dB
• THD: < 1%
• Power Supply: 230V / 115V (switchable)
• Power Consumption: 55W
• Operating Conditions:
• Temperature range: 10°C to 35°C
• Humidity range: 30% to 70% RH

Components Highlights

• Classic EQP and MEQ combination
• Custom transformers – Made in-house
• Neutrik connectors
• High-quality components
• Class A buffer amplifier
• Fully passive EQ circuit
• Custom inductors
• 115–230 V voltage selector
• Handmade in EU
