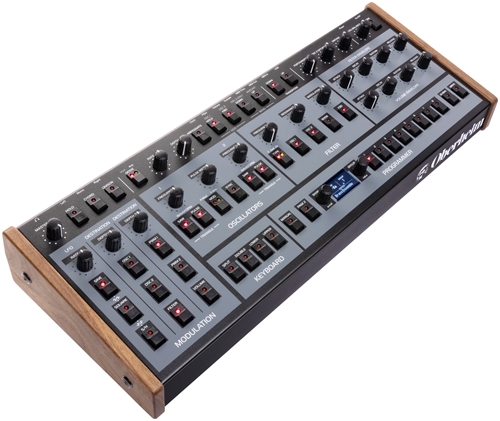

OB-3610 Oberheim OB-X8 Desktop Module
Eight-voice Polyphonic Analog Synth Module that combines all of the key features of the legendary OB-X, OB-Xa, and OB-8 products from the 1980s – including all the original presets that gave them their signature sounds.
OBERHEIM OB-X8 DESKTOP/MODULE SPECIFICATIONS
- 8-voice, pure-analog polyphony with sine, saw, square, triangle, and noise
- Two discrete SEM/OB-X-lineage VCOs per voice deliver classic punchy Oberheim tone
- Discrete SEM-lineage VCFs deliver authentic OB-X-style tone and presence
- Genuine Curtis filters add bold OB-Xa/OB-8 character
- Meticulously modeled envelope responses match each OB model: OB-X, OB-Xa, and OB-8
- Bi-timbral capability allows two presets simultaneously for splits and doubles
- 400-plus factory programs, including the full set of factory sounds for the OB-X, OB-SX, OB-Xa, and OB-8
- Integral, fanless, heatsink-free power supply
- Real walnut end cheeks
- High-resolution OLED display enables patch management and easy access to advanced features
ENHANCEMENTS
- Additional SEM filter modes add high-pass, band-pass, and notch functions to the classic OB-X filter
- Vintage knob allows variable amounts of voice-to-voice variability to emulate the behavior of vintage instruments
- Velocity sensitivity adds expressiveness to volume and filter
- Channel Aftertouch adds real-time performance-based modulation
- Enhanced unison allows variable voice stacking from 1-8 voices
- Variable triangle wave cross-modulation
- Over 600 user-programmable preset locations
- Programmable per-voice pan allows wider stereo presence
- Variable oscillator and noise levels
INS & OUTS
- Stereo and Mono outputs
- Volume, Sustain, and Filter inputs
- Arpeggiator clock input
- MIDI In, Out, Thru
- USB
