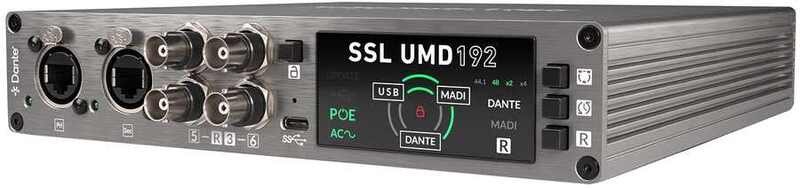

SSL UMD192

Solid State Logic is proud to introduce the UMD192, a powerful and portable USB audio interface designed to meet the demands of professional live sound, broadcast, and high-spec studio environments. With seamless integration across MADI, Dante, and USB, the UMD192 offers flexible routing, high channel counts, and uncompromising performance for recording, playback, and format bridging. Providing 192 channels at both 96 and 48 kHz, or 128 channels at 192 kHz in a compact and portable ½RU form factor.

Key Features

• 192 channels at 48/44.1 kHz, 192 channels at 96/88.2 kHz, and 128 channels at 192/176.4 kHz
• USB 3.0 class-compliant interface
• Mac OS compatible; Windows support via SSL driver
• 6x MADI BNC pairs with redundant mode for 3x dual-redundant MADI connections
• Fully interoperable Dante AoIP with AES67 and ST 2110 (with DDM) support
• Ultra-low Dante latency—as low as 0.25ms
• Flexible clocking from MADI or Dante
• Ruggedised Ethernet ports (2x Primary, 2x Secondary) with Link & Activity LEDs
• Clear front-panel indicators for signal flow, sample rate matching, power status, and connectivity
• Intuitive front-panel controls, with a lockout feature to prevent accidental changes during operation.
• Multiple power options: AC, PoE, or USB—with redundancy support
• Lightweight and portable design for desktop, console-side, or rack-mounted use
• Included cables: USB-C to C, USB-A to C adapter, IEC power cable
