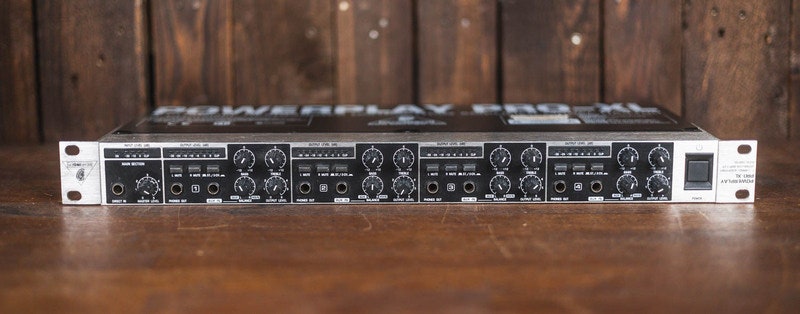

Behringer HA-4700

NOTE: Used headphone amplifier form Behringer. See pictures for condition. 6 months warranty.

Headphone Amplifier for Mixing and Distribution – 4-Channel Model with Flexible Connectivity

Flexible Headphone Mixing for Studio Use

The Behringer POWERPLAY HA4700 is a four-channel headphone amplifier designed to distribute individual mixes to multiple listeners simultaneously. Each channel features separate level and EQ controls, allowing users to customize their own mix during recording or rehearsal.

Individual Control Per Channel

Each of the four amplifier channels includes a 2-band EQ, 8-segment output level LED meter, mute switches for left and right channels, and a stereo/dual mono switch. A dedicated AUX input per channel enables blending in an additional audio source—such as an instrument or click track—for a more personalized mix.

Comprehensive Connectivity

In addition to the front-mounted headphone outputs, each channel offers two extra ¼" outputs on the rear panel, allowing up to 12 headphones to be connected at once. Both ¼" stereo and XLR input/output options are available on the back, making it easy to chain multiple HA4700 units in a larger studio setup.

Low Noise and High Audio Performance

Built with low-noise 4580 operational amplifiers, the HA4700 delivers clean and clear audio reproduction even under high load. It supports headphone impedances down to 8 Ohms and provides sufficient power for both professional and semi-professional environments.

Specifications

• 4 amplifier channels with individual control
• 2-band EQ per channel
• Separate AUX inputs for each channel (¼" stereo)
• Front-mounted headphone outputs (¼")
• Two additional headphone outputs per channel on the rear panel
• Stereo/dual mono mode switch
• 8-segment LED output meter per channel
• Main section with 5-segment LED meter and Master Level control
• Direct input (¼") for reference signal
• Rear panel ¼" stereo and XLR input/output
• Low-noise 4580 operational amplifiers
• Supports headphones down to 8 Ohms
